345-015-540-107

Edgeboard Connectors Overview

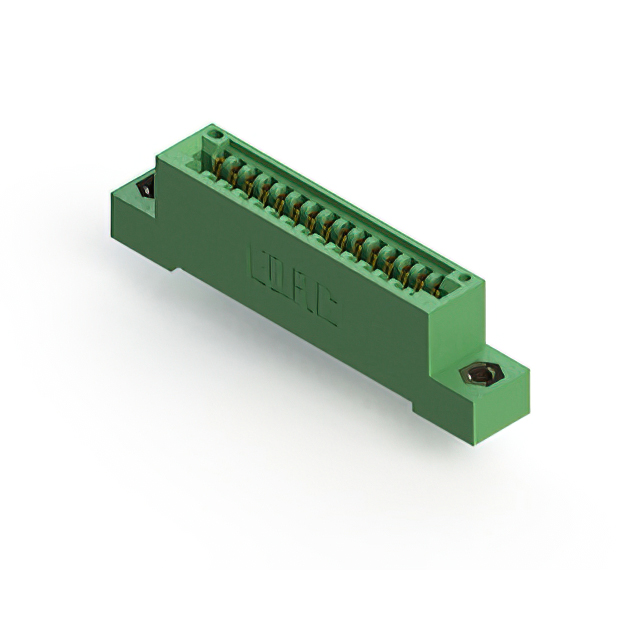

The EDAC Inc. 345-015-540-107 is a standard card edge connector from the 345 series, designed for through-hole mounting with a vertical orientation. It features 15 positions in a single row with a 2.54 mm (0.100 inch) pitch. The connector utilizes copper alloy contacts with a gold plating thickness of 10.0 µin (0.25 µm). It is rated for 3 A current and operates within a temperature range of -40°C to 105°C. The housing is made of green thermoplastic polyester, accommodating board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting style with wire wrap termination
• Single-sided female contact configuration for non-specified card edges
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester insulation providing thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment interfaces demanding high reliability
• Agricultural technology applications in harsh environments
• General-purpose electronic circuit board connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 15-position single-row configuration before procurement. Confirm that the wire wrap termination type aligns with the assembly process capabilities. Ensure the operating temperature range of -40°C to 105°C meets the environmental requirements of the target application. Check for RoHS compliance status if restricted substances are a concern in the manufacturing process.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 15-pin connection is necessary for vertical board integration. The 2.54 mm pitch is suitable for standard density PCB layouts. Consider the 3 A current rating for power distribution needs. The wire wrap termination requires compatible assembly tools. Evaluate the mechanical stability provided by the flange features if panel mounting support is needed.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 345 series, which offers a comprehensive range of card edge solutions. The series is known for durability in medical and agricultural sectors. The 345-015-540-107 represents a specific variant optimized for single-sided connections. It complements other models in the series that offer different pin counts and dual-sided configurations.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 345 series parts for alternative pin counts or orientations. Verify compatibility with existing PCB footprints before substituting. Ensure that any replacement maintains the same 2.54 mm pitch and current rating specifications.
