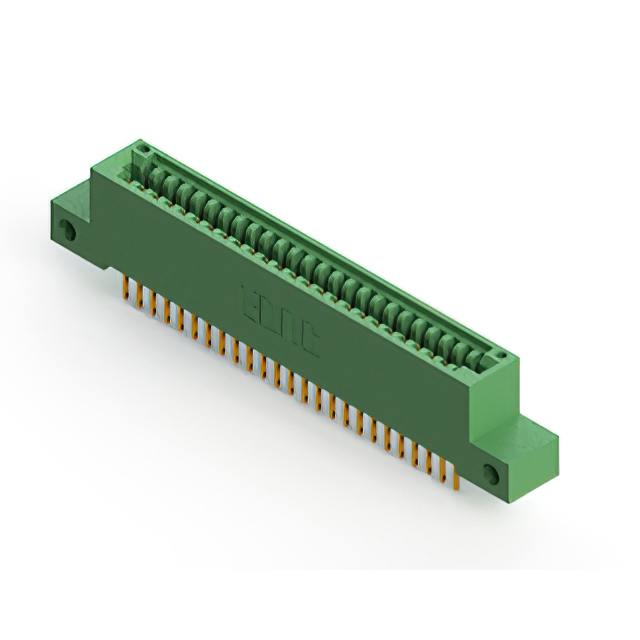

345-025-558-112

$10.14

Description：CONN EDGE SINGLE FML 25POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:c613dc3872a0 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

345-025-558-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 25POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-025-558-112

Description：CONN EDGE SINGLE FML 25POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：25
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-025-558-112

345-025-558-112

Edgeboard Connectors Overview

The EDAC Inc. 345-025-558-112 is a standard card edge connector designed for single-edge board applications. It features 25 positions with female contacts arranged in a single row and a 0.100-inch (2.54mm) pitch. The connector utilizes wire wrap termination and copper alloy contacts with gold plating. It supports PCB thicknesses of 1.57mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Single-row female contact configuration for non-specified single-edge cards
Wire wrap termination method for secure circuit board attachment
Gold-plated copper alloy contacts ensuring reliable signal transmission
Thermoplastic polyester insulation housing with green coloration

Edgeboard Connectors Applications

Standard card edge interconnects requiring single-sided access
Industrial control modules utilizing wire wrap assembly techniques
Electronic systems operating within extended temperature environments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact termination style, mounting flange options, and contact plating specifications. Ensure compatibility with target PCB thickness and card guide requirements before procurement. Cross-reference manufacturer datasheets for precise mechanical dimensions and environmental ratings.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 25-position interface is required for non-specified single-edge cards. Confirm that wire wrap termination aligns with the assembly process. Verify that the 0.100-inch pitch matches the board layout and that the operating temperature range meets system environmental demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various configurations including different pin counts, row arrangements, and termination methods. The 345 series is designed for robust performance in industrial and commercial electronic applications requiring reliable board-to-board or board-to-backplane connections.
