345-059-544-112

Edgeboard Connectors Overview

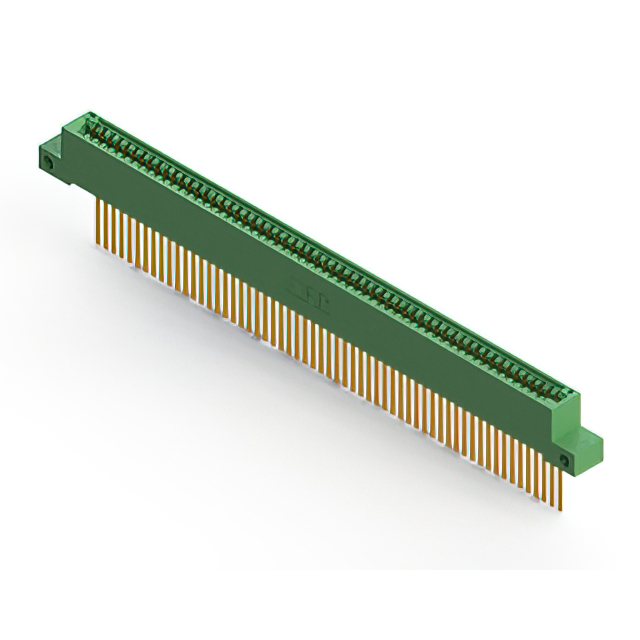

The EDAC Inc. 345-059-544-112 is a standard card edge connector from the 345 series, designed for through-hole mounting with a right-angle orientation. It features 59 positions arranged in a single row with a 2.54 mm (0.100 inch) pitch. The contacts are made of copper alloy and gold-plated to ensure reliable signal transmission, while the housing utilizes thermoplastic polyester. Rated for 3 A current, it supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide durable electrical connections for high-reliability applications.
• Thermoplastic polyester housing offers structural integrity and thermal resistance up to 105°C.
• Right-angle through-hole design facilitates efficient board layout and secure mechanical attachment.

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interfaces
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific suffix matches the required pin count and orientation. Ensure compliance with RoHS directives if applicable to your assembly standards. Check for any regional distribution restrictions before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a high-density interface with 59 positions is required on a single-row configuration. The right-angle form factor is suitable for space-constrained vertical mounting scenarios. Ensure the target printed circuit board accommodates the specified 1.57 mm thickness and compatible hole dimensions for proper insertion.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors, which are engineered for general-purpose electronic assemblies. The series provides various position counts and mounting styles to support diverse hardware integration needs across multiple industrial sectors.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 345 series connectors with matching 59-position counts and 2.54 mm pitch. Verify that alternative parts maintain identical right-angle mounting orientations and through-hole termination types to ensure mechanical compatibility.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The connector is rated for operation up to +105°C, ensuring stability in elevated thermal environments.

Does this model support double-sided card edges?

No, this is a single-edge connector designed for one-sided card insertion.
