345-126-560-204

Edgeboard Connectors Overview

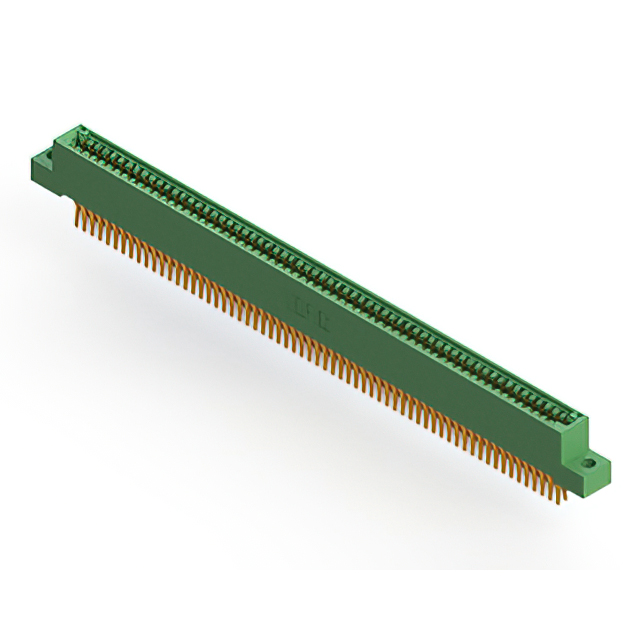

The EDAC Inc. model 345-126-560-204 is a standard card edge connector designed for vertical panel mounting applications. It features a dual-row configuration with 126 positions and a contact pitch of 2.54 mm (0.100 inch). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with thermoplastic polyester housing, it provides reliable electrical performance in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-row design for high-density signal routing
• Vertical panel mount orientation for secure integration
• Gold-plated contacts for enhanced conductivity
• Thermoplastic polyester insulation for durability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Medical instrumentation
• Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange options. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and regional distribution restrictions.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count vertical interface is required for panel-mounted assemblies. The 2.54 mm pitch accommodates standard board layouts. Consider the gold plating for corrosion resistance in harsh environments. Verify that the 126-position count meets the system's I/O requirements without exceeding available panel space constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination styles. The 345-126 variant specifically addresses applications requiring substantial connectivity density within a compact vertical footprint. It complements other models in the lineup by providing robust mechanical stability for repeated insertion cycles.

Edgeboard Connectors Replacement Considerations

Direct substitutes include EDAC part numbers within the same 345 series sharing identical pin counts and pitch specifications. Verify equivalent row spacing and board thickness acceptance criteria. Alternative manufacturers may offer compatible solutions if mechanical dimensions and electrical ratings align precisely with the original design parameters.
