350-80-127-01-714101

Headers, Male Pins Overview

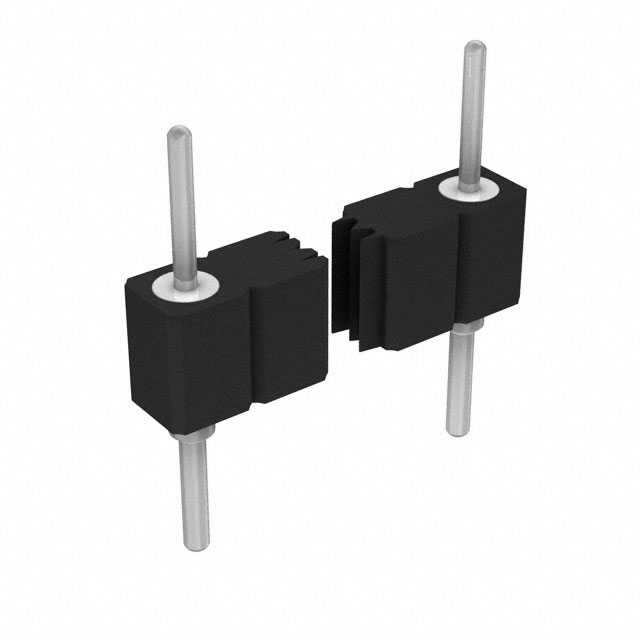

The Preci-Dip 350-80-127-01-714101 is a vertical board-to-board header connector from the 350 Series. It features 14 positions with a 0.200" (5.08mm) pitch and single-row male pin configuration. Designed for through-hole mounting, it utilizes solder termination and black PCT insulation rated UL94 V-0. The connector supports a maximum current of 3A at 150VDC, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Through-hole solder termination for secure PCB attachment
• High-temperature resistant PCT insulation material

Headers, Male Pins Applications

• Board-to-board signal transmission
• Industrial control system interconnects
• Electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific part number against official Preci-Dip documentation to confirm pin count and pitch specifications. Ensure compatibility with mating socket connectors regarding contact length and alignment. Confirm that the through-hole mounting style matches the target PCB layout requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a 5.08mm pitch vertical header is required for high-reliability board-to-board connections. Consider the 3A current rating and 150VDC voltage limit for circuit suitability. Verify that the single-row male pin configuration aligns with the mating interface design and available panel space constraints.

Headers, Male Pins Part Context

This connector belongs to the Preci-Dip 350 Series, which offers various position counts and pitch options. Similar models include 350-80-133-01-714101 (17 positions) and 350-80-135-01-714101 (18 positions), providing flexibility for different circuit density requirements while maintaining consistent mechanical and electrical characteristics across the series.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include Preci-Dip part numbers such as 310-87-117-01-609101. Ensure replacement parts maintain the same 5.08mm pitch and vertical orientation to guarantee proper mechanical fit and electrical continuity in existing assemblies.
