356-033-500-112

Edgeboard Connectors Overview

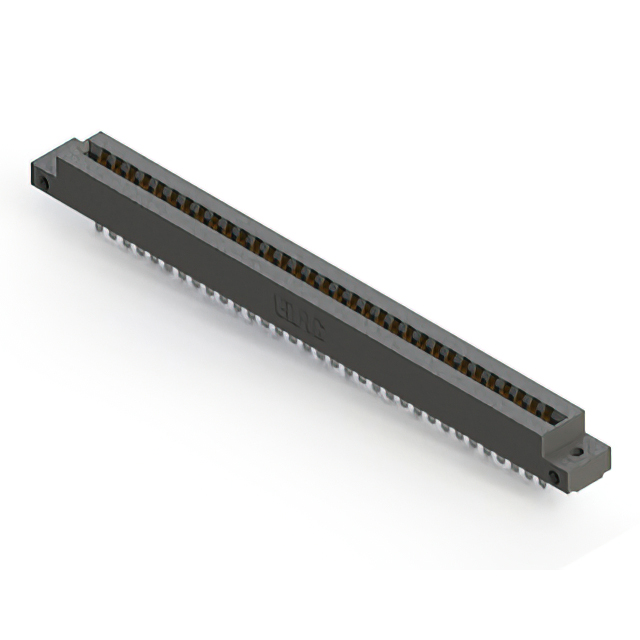

The EDAC Inc. 356-033-500-112 is a dual-edge female card edge connector featuring 66 positions with a 0.156-inch (3.96mm) centerline spacing. It utilizes gold-plated contacts and has a housing height of 0.460 inches (11.68mm). The component is designed for panel mount installation and operates within a temperature range of -65°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contact surfaces for reliable signal transmission
• Thermoplastic polyester housing material for structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• General-purpose electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific part number against manufacturer datasheets to confirm pin count, plating type, and mounting style. Ensure compatibility with target PCB thickness and mating card dimensions before procurement.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 66 positions is required. Consider the 0.156-inch pitch and panel mount orientation. Verify thermal ratings meet operational environment requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 356 series of standard card edge connectors. The series is characterized by black thermoplastic housings and 0.156-inch spacing, providing a standardized solution for vertical panel mounting applications in electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 356 series variants for position count differences. Verify mechanical dimensions and electrical ratings match before substituting with generic equivalents.
