Edgeboard Connectors Overview

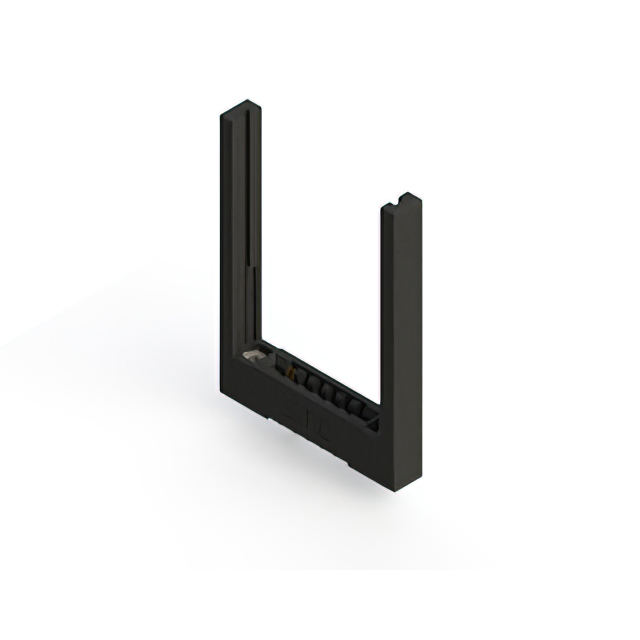

The EDAC Inc. 357-006-541-168 is a standard card edge connector designed for dual female mating configurations. It features 12 positions with a pitch of 0.156 inches (3.96 mm). The connector supports a board thickness of 1.57 mm and utilizes gold-plated contacts to ensure reliable signal transmission. Constructed with a thermoplastic polyester housing, it offers vertical mounting orientation suitable for panel or board applications. This component belongs to the EDAC 357 series, providing robust interconnect solutions for various electronic systems requiring secure card edge connections.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Vertical mounting style compatible with standard panel installations
• Thermoplastic polyester housing for durable insulation

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems
• Communication infrastructure

Edgeboard Connectors Procurement Notes

Verify part authenticity through authorized EDAC distributors or official channels. Confirm RoHS compliance status and specific shipping restrictions applicable to your region prior to ordering. Ensure that the requested quantity matches available supply levels, as stock may be limited. Cross-reference the manufacturer number 357-006-541-168 with official datasheets to validate technical specifications against project requirements.

Edgeboard Connectors Selection Notes

Select this connector when a dual female card edge interface with a 3.96 mm pitch is required. Ensure the target PCB thickness aligns with the 1.57 mm specification for proper engagement. Consider the vertical mounting orientation for panel integration needs. Verify that the 12-position count meets the circuit density requirements of the application design.

Edgeboard Connectors Part Context

This component is part of the EDAC 357 series of card edge connectors, which are engineered for high-reliability interconnect applications. The series includes various position counts and configurations tailored for diverse industrial and commercial environments. EDAC provides comprehensive support materials, including ECAD models and detailed datasheets, to facilitate seamless integration into electronic designs.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 357 series. Ensure any replacement maintains identical pitch, position count, and mounting characteristics. Cross-check mechanical dimensions and electrical ratings to guarantee compatibility with existing PCB layouts and mating components.
