357-014-442-201

Edgeboard Connectors Overview

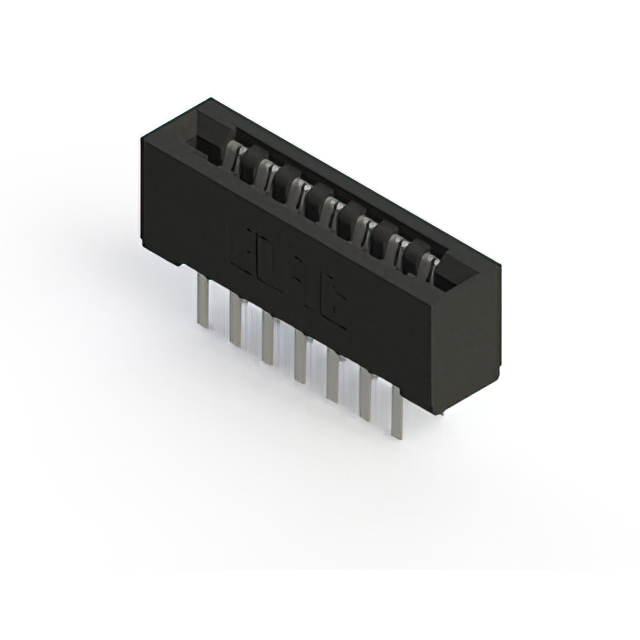

The EDAC Inc. 357-014-442-201 is a standard card edge connector from the 357 series, designed for vertical panel mounting applications. It features a dual female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The contacts are gold-plated copper alloy, rated for 5 A current at an insulation resistance of 5 GOhms. The housing is constructed from thermoplastic polyester, supporting PCB thicknesses of 1.57 mm. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure board insertion
• Vertical panel mount design with flange integration
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Medical device circuit board interfaces
• Agricultural technology equipment connections
• General-purpose electronic module mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness and mechanical tolerances. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet release. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge interface is required for panel-mounted assemblies. The 3.96 mm pitch accommodates standard board widths while maintaining high current capacity. Verify that the application environment falls within the specified -40°C to +105°C operating temperature range. Consider the gold plating requirement for corrosion-resistant contact performance in demanding conditions.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 357 series, which provides robust interconnect solutions for various industrial and commercial applications. The series offers multiple position counts and mounting styles to support diverse board layout requirements. EDAC specializes in medical and agricultural interconnect technologies, ensuring durability in harsh environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 357 series variants with matching pin counts and pitch dimensions. Verify mechanical fit and electrical ratings before substituting with connectors from different manufacturers. Ensure any alternative part maintains the same vertical mounting orientation and dual-row configuration.
