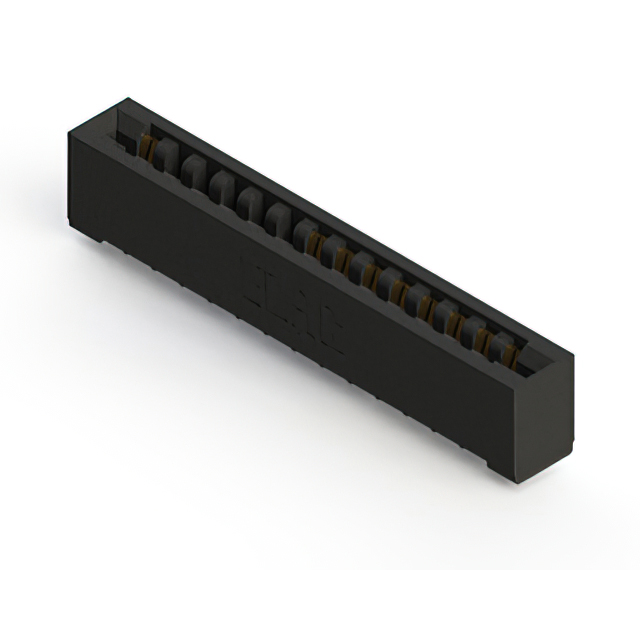

357-014-505-101

$7.82

Description：CONN EDGE SGL FMALE 14POS 0.156
Series：357
Mfr：EDAC Inc.
Package：Box

SKU:4d25bcd9adae Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

357-014-505-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 357-014-505-101

Description：CONN EDGE SGL FMALE 14POS 0.156
Series：357
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：14
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 357-014-505-101

357-014-505-101

Edgeboard Connectors Overview

The EDAC Inc. 357-014-505-101 is a standard card edge connector featuring 14 positions arranged in a single row with a 3.96 mm (0.156 inch) pitch. Designed for vertical panel mounting, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a maximum operating temperature of +105°C and a minimum of -40°C, accommodating board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

Vertical panel mount configuration for secure installation
Gold-plated contacts on copper alloy substrate
Thermoplastic polyester insulation material

Edgeboard Connectors Applications

Single-edge circuit board interconnection
Panel-mounted electronic assemblies
Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm contact plating thickness and housing color variations. Ensure the ordering part number matches the required single-row configuration and 14-position count. Cross-reference the RoHS compliance status directly with the official documentation before procurement.

Edgeboard Connectors Selection Notes

Select this model when a single-row, 14-position interface is required with a 3.96 mm pitch. Confirm that the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range. Verify that the vertical panel mount style aligns with the mechanical enclosure design requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 357 series of standard card edge connectors. The series offers various position counts and configurations, all sharing the consistent 3.96 mm pitch and robust construction suitable for demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 357 series variants with matching 14-position single-row layouts. Verify identical pitch, mounting style, and contact material specifications before substitution.
