357-024-559-268

Edgeboard Connectors Overview

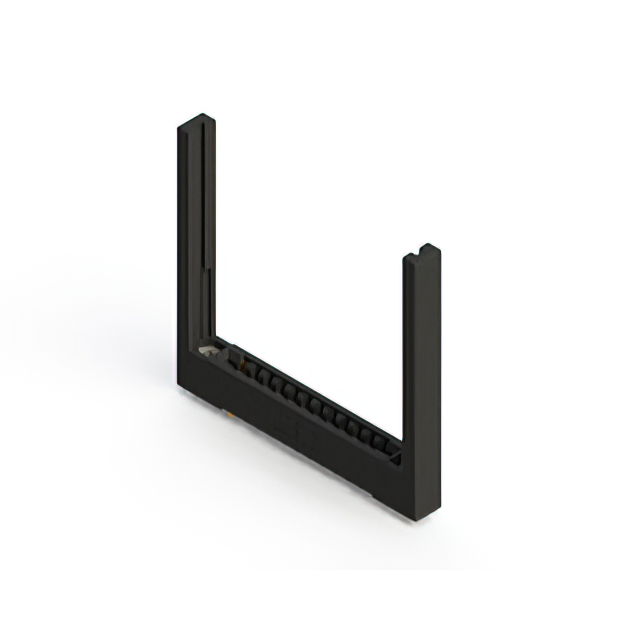

The EDAC Inc. 357-024-559-268 is a standard card edge connector from the 357 series, designed for vertical panel mount applications. It features 24 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts plated in gold and a thermoplastic polyester insulator, it supports wire wrap termination. The unit operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration with high-profile insulator body
• Gold-plated copper alloy contacts for reliable signal transmission
• Compatible with 0.062-inch nominal thickness PCBs
• Wire wrap termination style for secure electrical connections

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thickness and termination methods. Confirm RoHS compliance status directly with the supplier or authorized distributor prior to purchase. Cross-reference the part number with official EDAC documentation to validate availability and lead times, as distribution channels may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge interface is required for 24-position circuits. Ensure the design accommodates the 0.156-inch pitch and 0.200-inch row spacing. Verify that the target PCB thickness matches the 0.062-inch specification. Consider the wire wrap termination requirement during assembly planning and confirm thermal ratings align with the operational environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 357 series, which provides standard card edge solutions for various industries. The series offers multiple position counts and mounting styles, utilizing consistent 0.156-inch spacing. The 357-024-559-268 variant specifically addresses needs for dual female contacts in a vertical orientation, supporting robust connectivity in demanding environments through its durable construction and gold plating.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical 24-position count, 0.156-inch pitch, and vertical panel mount specifications. Verify that alternative components support wire wrap termination and match the required PCB thickness tolerance.
