387-038-560-803

Edgeboard Connectors Overview

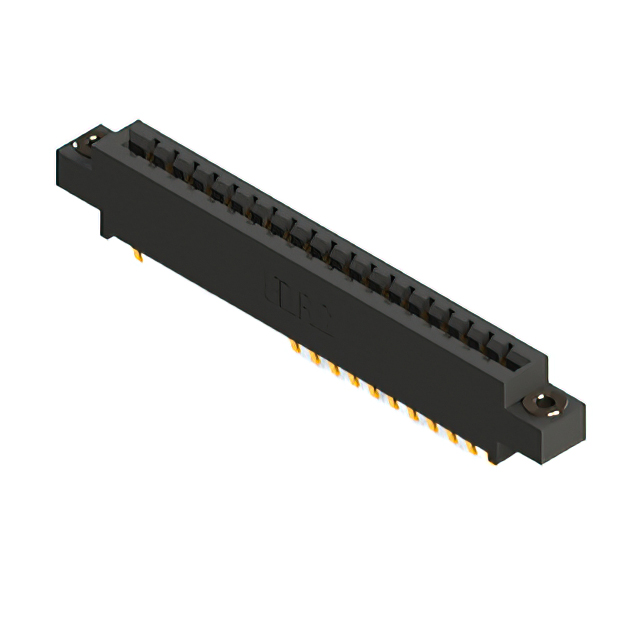

The EDAC Inc. 387-038-560-803 is a standard card edge connector from the 387 Series, designed for through-hole mounting on printed circuit boards. It features a dual female configuration with 38 positions arranged in a single row. The connector utilizes a 0.156-inch (3.96 mm) contact pitch and is compatible with PCB thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Constructed with copper alloy contacts featuring gold plating, it ensures reliable signal transmission. The housing is made of black thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge insertion
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Through-hole termination method for robust mechanical stability
• Thermoplastic polyester insulation providing thermal resilience

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Medical device internal board-to-board linking
• Consumer electronics module integration

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 38-position dual female specification before procurement. Confirm compliance with RoHS3 standards if environmental regulations apply to your assembly process. Ensure the receiving facility has appropriate handling procedures for sensitive electronic components. Cross-reference the manufacturer's ordering guide to validate suffix codes against desired flange or packaging requirements. Maintain storage conditions within specified temperature ranges to preserve material integrity prior to installation.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge connection is required for high-density applications. The 0.156-inch pitch accommodates standard PCB layouts while the through-hole design offers superior mechanical strength compared to surface mount alternatives. Consider the operating temperature range of -40°C to +105°C for environments with significant thermal fluctuations. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm acceptance window for optimal contact engagement.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 387 Series, which specializes in standard card edge solutions. The series provides various position counts and configurations to support diverse electronic assembly needs. Components in this line are characterized by their durable construction and consistent electrical performance across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 387 Series connectors with matching pin counts and dual female configurations. Verify compatibility with existing PCB footprints and mounting hole patterns when considering alternative part numbers from the same family.
