387-060-540-803

Edgeboard Connectors Overview

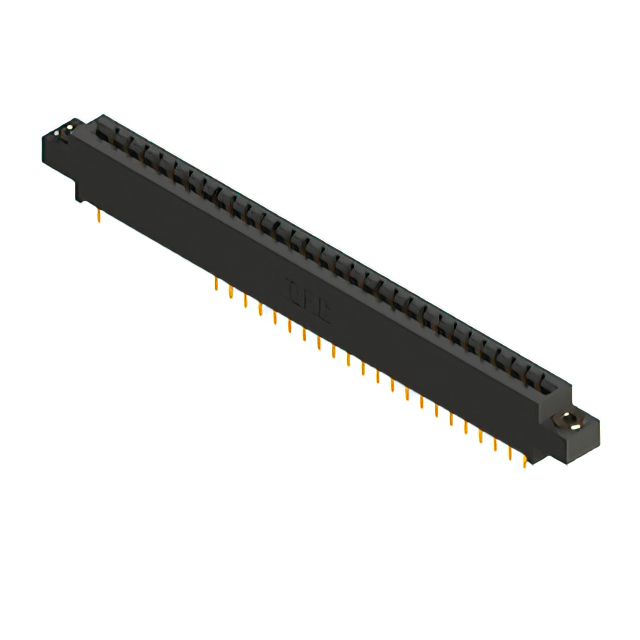

The EDAC Inc. model 387-060-540-803 is a standard card edge connector designed for through-hole mounting. It features a dual female configuration with 60 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and supports a PCB thickness of 0.200 inches. Contact plating consists of gold over copper alloy to ensure reliable signal transmission. The housing is constructed from black thermoplastic material, providing structural integrity and insulation.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density board connections
• Gold-plated copper alloy contacts for corrosion resistance
• Through-hole termination method with wire wrap compatibility
• Vertical mounting orientation for panel or chassis integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit board interfaces
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and flange options. Ensure the target PCB design accommodates the specified 0.200-inch thickness and 3.96 mm pitch. Confirm RoHS compliance status matches project requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count vertical interface is required. The dual-row layout maximizes connection density within a limited footprint. Verify that the application environment remains within the thermal limits of the thermoplastic housing. Ensure mating cards align precisely with the 0.156-inch guide rails for secure insertion.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 series, which specializes in standard card edge connectors. The series offers various position counts and termination styles. The 387 series is widely used in modular electronic systems requiring robust mechanical retention and reliable electrical performance across diverse industrial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 387 series variants with matching 60-position dual-row layouts. Cross-reference pitch and PCB thickness requirements carefully. Alternative manufacturers may offer similar specifications but require verification of dimensional tolerances and contact force characteristics.
