387-062-556-868

Edgeboard Connectors Overview

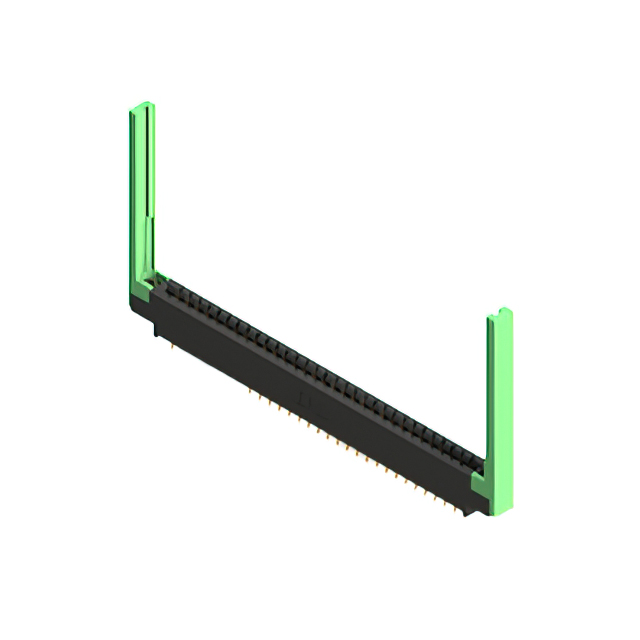

The EDAC Inc. 387-062-556-868 is a standard card edge connector from the 387 series, designed for dual-edge board applications. It features 62 positions with a 3.96 mm (0.156 inch) pitch and a 5.08 mm row spacing. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic polyester housing. It supports a current rating of 3 A and operates within a temperature range of -40°C to +105°C. The unit is engineered for PCB thicknesses between 1.37 mm and 1.78 mm, ensuring reliable electrical connections in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• High-temperature thermoplastic polyester insulator
• Multiple mounting and card guide solutions available

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit boards
• Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination style against your design requirements before ordering. Confirm that the PCB thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper mechanical fit. Check RoHS compliance documentation if environmental regulations apply to your project. Ensure compatibility with existing card guide accessories if panel mounting is required.

Edgeboard Connectors Selection Notes

Select this model when a high-density connection with a 3.96 mm pitch is necessary. The dual-edge design provides enhanced stability compared to single-edge variants. Consider the 3 A current rating for power distribution needs. The straight or angled mounting options should be chosen based on the spatial constraints of the enclosure and the orientation of the mating card edge.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 series, which offers a wide variety of configurations including different pin counts, termination types, and mounting styles. The series is known for providing flexible solutions for card edge applications, allowing engineers to mix and match accessories like guides and covers. The 387 series is widely used across multiple industries due to its reliability and standardized dimensions.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When replacing, ensure the new connector matches the 3.96 mm pitch, 62 position count, and dual-edge contact type. Verify that the housing material and temperature ratings meet or exceed the original specifications.
