391-036-520-204

Edgeboard Connectors Overview

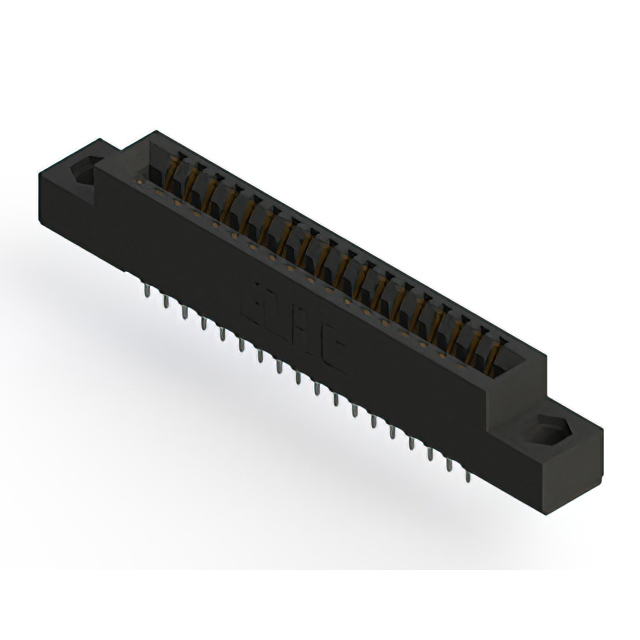

The EDAC Inc. 391-036-520-204 is a dual-edge female card edge connector from the 391 series, designed for through-hole mounting. It features 36 positions with a 0.100-inch (2.54mm) pitch and supports board thicknesses of 0.054 to 0.070 inches. The contacts are gold-plated copper alloy, housed in black thermoplastic polyester. Operating temperature ranges from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Gold-plated terminals ensure reliable conductivity and corrosion resistance
• Thermoplastic polyester housing provides thermal stability up to 105°C
• Through-hole termination method ensures robust mechanical fixation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device circuit board connections
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific pin count and row configuration against design requirements before ordering. Confirm that the target PCB thickness falls within the specified range of 0.054 to 0.070 inches. Ensure the manufacturing source is authorized to guarantee component authenticity and compliance with RoHS standards. Check lead times as availability may vary by region.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with a standard 0.100-inch pitch is required. It is suitable for applications needing through-hole mounting and gold-plated contacts. Consider the 391 series characteristics for general-purpose industrial use. Verify compatibility with mating card edge dimensions and available panel space constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 391 series of standard card edge connectors. The series offers various position counts and mounting options. The 391-036-520-204 specifically addresses needs for 36-position dual-edge connections. It is part of a broader portfolio serving communication, industrial, and consumer markets.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation. Cross-reference with other EDAC 391 series variants or consult manufacturer guidelines for equivalent specifications.
