Edgeboard Connectors Overview

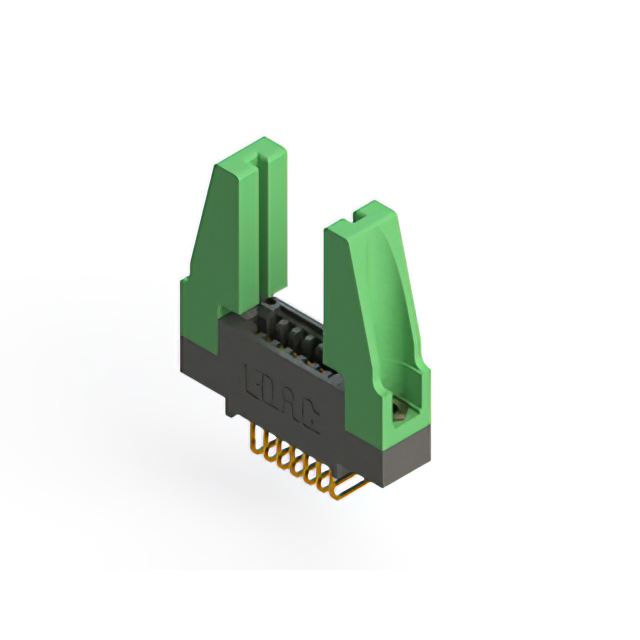

The EDAC Inc. 395-007-558-488 is a standard card edge connector designed for single-sided edge board applications. It features a 2.54 mm (0.100 inch) pitch and provides seven positions for signal transmission. The component utilizes gold-plated contacts to ensure reliable electrical performance and corrosion resistance. It is configured as a female connector with a right-angle mounting orientation, allowing for perpendicular connection to the host PCB. The unit is housed in a black insulator body.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for edge board insertion
• Right-angle mounting design for orthogonal PCB integration
• Gold-plated contact surfaces for enhanced conductivity
• Standard 2.54 mm pitch spacing between positions

Edgeboard Connectors Applications

• Single-sided card edge interface connections
• Right-angle PCB mounting scenarios
• General electronic module interconnects

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and insulator color variants. Ensure compatibility with the target card edge thickness and verify that the right-angle orientation matches the mechanical layout requirements of the assembly.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, right-angle connection is required for single-sided edge cards. Confirm that the seven-position count aligns with the circuit trace requirements. Verify that the 2.54 mm pitch matches the mating card edge finger dimensions.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic packaging needs. The 395-007-558-488 represents a specific configuration within this family optimized for seven-channel interfaces.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series parts sharing the same 2.54 mm pitch and seven-position count. Verify mechanical dimensions and contact plating specifications before substituting with generic equivalents.
