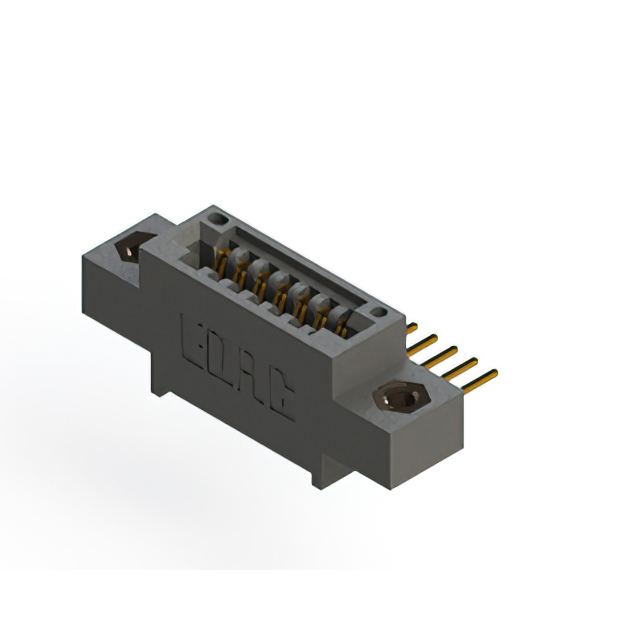

395-007-559-607

$9.78

Description：CONN EDGE SINGLE FML 7POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:0a8cd5b68fe6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-007-559-607 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 7POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-007-559-607

Description：CONN EDGE SINGLE FML 7POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：7
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-007-559-607

395-007-559-607

Edgeboard Connectors Overview

The EDAC Inc. 395-007-559-607 is a single-row card edge connector with seven positions and female contacts. It features a 0.100-inch (2.54mm) pitch and utilizes gold-plated terminals for reliable signal transmission. The housing is constructed from black thermoplastic polyester, supporting a board thickness range of 0.054 to 0.070 inches. Designed for through-hole mounting, this component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

Single-edge female contact configuration for non-specified card insertion
Gold-plated terminal surfaces ensure corrosion resistance and stable conductivity
Thermoplastic polyester insulation provides thermal stability and durability

Edgeboard Connectors Applications

General-purpose electronic circuit interconnections
Industrial control system module interfaces
Communication equipment backplane connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes to ensure correct pin count and termination style. Confirm that the mating card thickness falls within the specified mechanical limits. Check for RoHS3 compliance requirements if operating in regulated regions. Ensure mounting hole dimensions align with the panel or PCB layout specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a low-profile, single-row interface is required for compact designs. The 0.100-inch pitch accommodates standard board layouts while maintaining robust electrical performance. Consider the through-hole termination method for applications requiring high mechanical strength during insertion cycles. Evaluate the operating temperature range against environmental conditions to ensure long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting options to support diverse electronic assembly needs. The 395-007 variant specifically addresses applications requiring minimal footprint with seven connection points. It serves as a fundamental interconnect solution within broader connector families designed for modular electronics.
