395-011-521-678

Edgeboard Connectors Overview

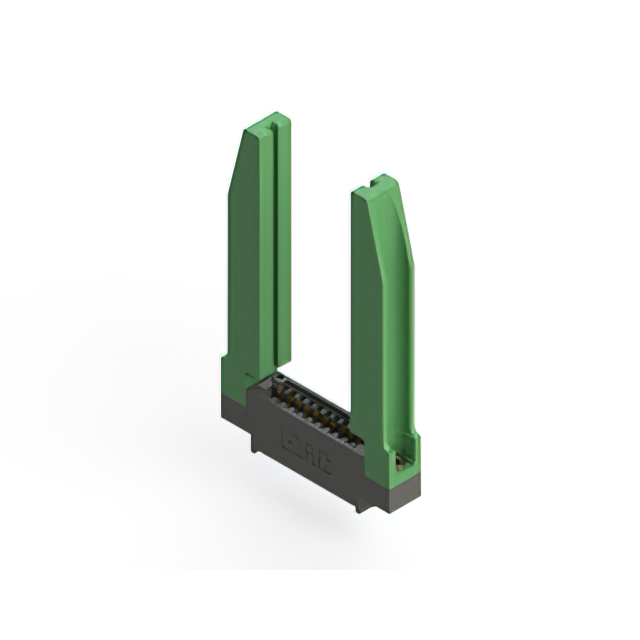

The EDAC Inc. 395-011-521-678 is a standard card edge connector featuring an 11-position single-row configuration with a 2.54 mm (0.100 inch) pitch. Designed for vertical panel mount installation, this receptacle utilizes gold-plated contacts to ensure reliable signal transmission. The unit accommodates a board thickness of 1.57 mm and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle design for secure integration
• Gold-plated contacts provide durable connection surfaces
• Single row configuration with standardized 2.54 mm spacing

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes against official EDAC documentation to confirm exact contact plating, housing material, and mounting style specifications. Ensure compatibility with target PCB edge thickness and verify that the vertical orientation aligns with mechanical enclosure constraints before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 11-position interface is required with a 2.54 mm pitch. The vertical mounting style suits applications needing direct perpendicular board insertion. Confirm that the operating temperature range meets environmental requirements and that the gold contact finish satisfies conductivity needs.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which provides standard card edge solutions. The series offers various position counts and mounting options, serving as a versatile interconnect family for general-purpose electronic assemblies requiring robust mechanical retention and electrical continuity.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series variants for different position counts or mounting styles. Verify dimensional compatibility and electrical ratings before substituting with connectors from other manufacturers to ensure mechanical fit and performance equivalence.
