395-018-524-802

$5.29

Description：CONN EDGE DUAL FMALE 18POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:d02fc0111f69 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-018-524-802 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-018-524-802

Description：CONN EDGE DUAL FMALE 18POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：9
Number of Positions：18
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-018-524-802

395-018-524-802

Edgeboard Connectors Overview

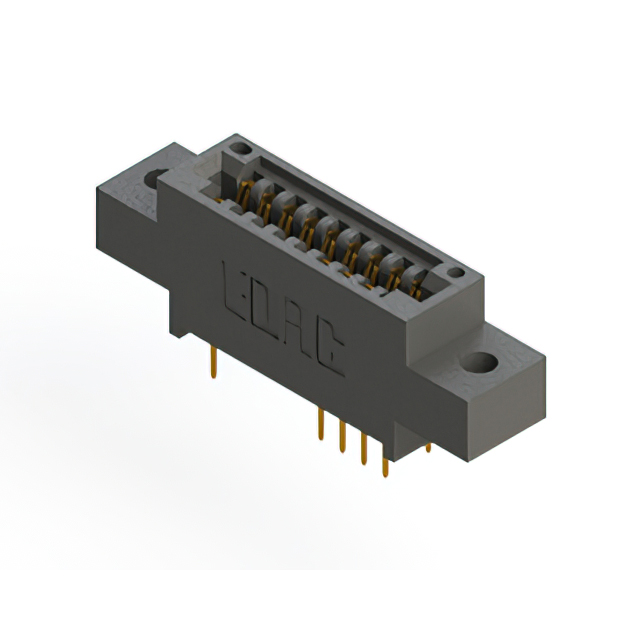

The EDAC Inc. 395-018-524-802 is a standard card edge connector designed for vertical panel mounting. It features an 18-position dual-edge female configuration with a 0.100-inch (2.54mm) contact pitch. The connector utilizes gold-plated contacts and a black thermoplastic polyester insulator. It supports board thicknesses of 1.57mm and employs solder pin termination for secure PCB attachment.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for reliable signal transmission
Vertical panel mount orientation for space-efficient integration
Gold-plated contacts ensure corrosion resistance and conductivity

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment interface modules
Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffix codes to ensure correct pitch, plating, and mounting style. Confirm RoHS compliance status and specific packaging quantities with authorized distributors prior to ordering. Cross-reference datasheet dimensions against mechanical constraints.

Edgeboard Connectors Selection Notes

Select this component when a vertical, double-sided card edge connection is required. Ensure the mating board thickness matches the specified 1.57mm tolerance. Verify that the 18-pin count aligns with circuit requirements and that the 0.100-inch pitch fits the layout grid.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific model provides a mid-range pin count suitable for moderate density applications within industrial and commercial electronics sectors.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the EDAC 395 series with identical pin counts and pitch. Verify compatibility with mating cards before adopting alternative manufacturers' components.
