Edgeboard Connectors Overview

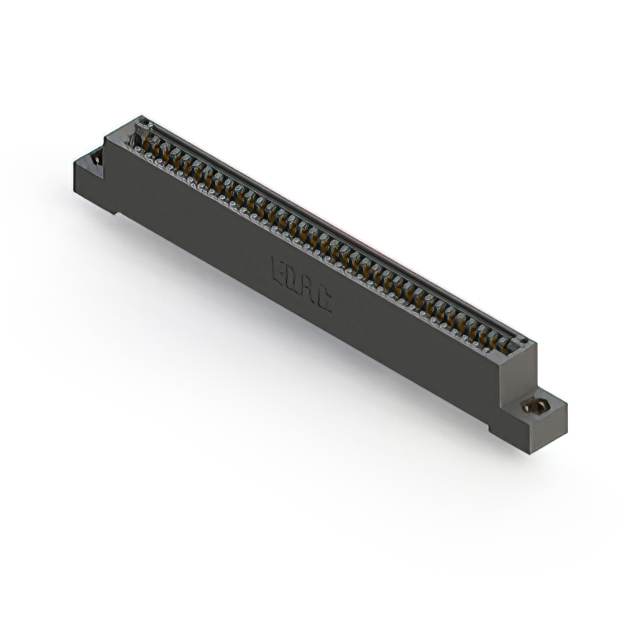

The EDAC Inc. 395-035-541-107 is a standard card edge connector featuring 35 positions with a 2.54 mm (0.100 inch) pitch. Designed for single-edge board insertion, it utilizes gold-plated contacts to ensure reliable signal transmission. The component supports a maximum PCB thickness of 1.57 mm and is configured for vertical mounting orientation. This connector belongs to the EDAC 395 series, which provides standardized dimensions and mechanical stability for electronic interconnect applications.

Edgeboard Connectors Feature Summary

• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Vertical mounting configuration for direct board integration
• Single-row design optimized for standard card edge interfaces

Edgeboard Connectors Applications

• Electronic module interconnection systems
• Industrial control panel circuitry
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes against official manufacturer documentation before ordering. Confirm that the specific variant matches the required pin count and termination style. Ensure compliance with relevant environmental directives such as RoHS standards applicable to your region. Cross-reference the datasheet specifications to validate compatibility with target PCB designs and mating components.

Edgeboard Connectors Selection Notes

Select this connector when a 35-position interface with 2.54 mm spacing is required. Verify that the target printed circuit board accommodates the specified 1.57 mm thickness limit. Ensure the application environment does not exceed the thermal ratings defined in the official datasheet. Confirm that the vertical mounting style aligns with the mechanical constraints of the assembly enclosure.

Edgeboard Connectors Part Context

This component is part of the EDAC 395 series, a family of standard card edge connectors designed for robust electronic connections. The series offers various position counts and termination options to suit different board densities. The 395-035-541-107 specifically addresses needs for medium-density single-edge applications requiring durable gold contacts.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides or distributor cross-reference tools for verified alternative part numbers. Ensure any substitute maintains identical pitch, position count, and mounting orientation. Verify that mechanical dimensions and electrical ratings match the original design requirements.
