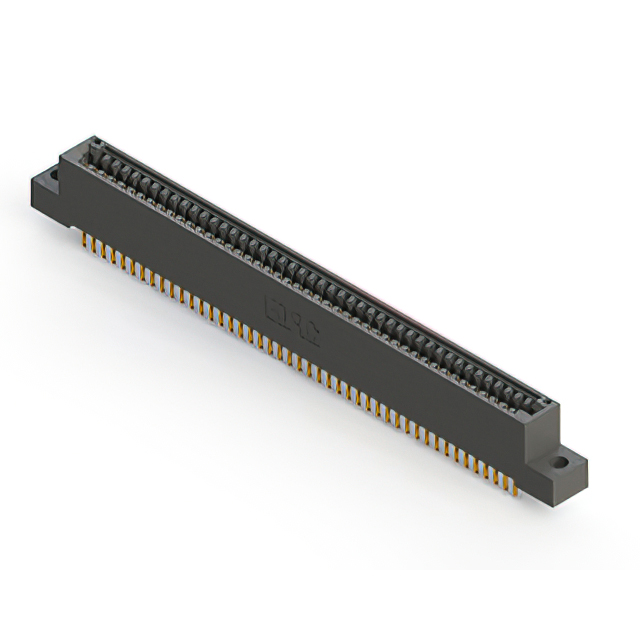

395-045-558-104

$11.98

Description：CONN EDGE SINGLE FML 45POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:65c770671047 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-045-558-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 45POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-045-558-104

Description：CONN EDGE SINGLE FML 45POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：45
Number of Positions：45
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-045-558-104

395-045-558-104

Edgeboard Connectors Overview

The EDAC Inc. 395-045-558-104 is a standard single-row card edge connector with a 2.54 mm (0.100 inch) pitch and 45 positions. It features gold-plated copper alloy contacts and a thermoplastic polyester insulator. Designed for through-hole right-angle mounting, it supports board thicknesses from 1.37 mm to 1.78 mm. The component operates within a temperature range of -40°C to +105°C and has an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Single-row configuration with 45 positions for reliable signal transmission
Gold-plated copper alloy contacts ensure durable connection performance
Thermoplastic polyester housing provides high-temperature stability
Right-angle through-hole mounting facilitates PCB integration

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment interface modules
Automotive electronic subsystem connections
Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange configurations. Ensure compatibility with target PCB stack-up dimensions and thermal requirements before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this model when a single-row, right-angle connection is required for boards between 1.37 mm and 1.78 mm thick. Consider the 45-position count and 2.54 mm pitch for space-constrained applications needing high-density routing with through-hole termination.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series, which offers various contact terminations and mounting options. It is designed for standard card edge applications, providing a balance of electrical performance and mechanical durability for industrial environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may not match the precise flange dimensions or contact material specifications required for original equipment compatibility.
