395-064-541-802

Edgeboard Connectors Overview

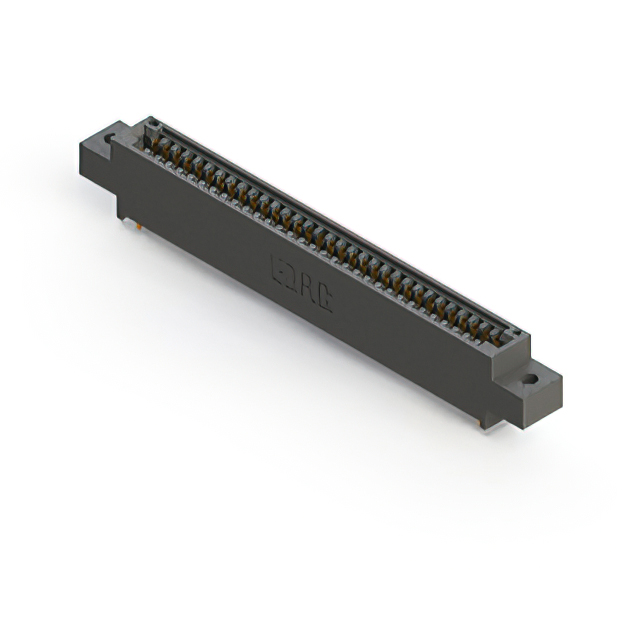

The EDAC Inc. 395-064-541-802 is a standard card edge connector designed for vertical board-to-board connections. It features 64 positions with a 0.100-inch (2.54mm) pitch and accepts dual-edge PCBs. The contacts are made of copper alloy with a gold finish, providing reliable signal transmission. This component utilizes a cantilever contact type and supports through-hole termination. It operates within a temperature range of -40°C to 105°C and includes flanges for secure mounting.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for robust board interface
• Gold-plated cantilever contacts ensure stable electrical connection
• Vertical installation orientation with through-hole termination
• Integrated flanges provide mechanical stability during operation

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's datasheet to confirm contact configuration and plating thickness. Ensure the target PCB thickness falls within the specified acceptance range for proper mating. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Cross-reference the package quantity requirements with production needs before placing orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector is required for vertical mounting applications. The 64-position count suits moderate density layouts. Verify that the 0.100-inch pitch aligns with the PCB trace spacing. Consider the cantilever contact style for ease of insertion and removal during maintenance or prototyping phases compared to other contact types.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and edge configurations to support diverse electronic packaging needs. The 395-064 variant specifically addresses applications needing a balanced balance between pin count and physical footprint. It is engineered for durability in demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include the 395-064-544-407 for single-edge applications and the 395-062-541-204 for similar positioning but different edge specifications. Verify dimensional compatibility and contact material properties before swapping parts to ensure mechanical fit and electrical performance remain consistent.
