395-066-542-258

Edgeboard Connectors Overview

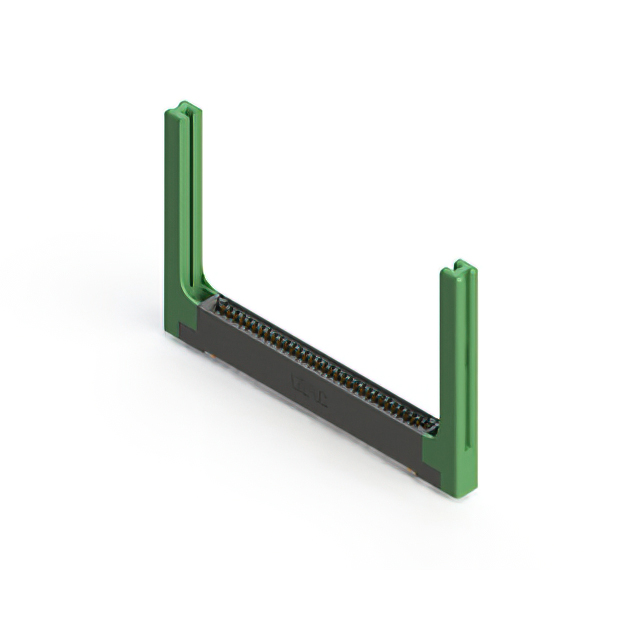

The EDAC Inc. 395-066-542-258 is a card edge connector designed for single-sided board insertion. It features 66 positions with a 0.100-inch (2.54mm) pitch. The connector utilizes female contacts made of copper alloy, finished with gold plating. It supports through-hole termination and operates within a temperature range of -40°C to 105°C. The housing is black thermoplastic polyester, accommodating board thicknesses from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Through-hole mounting provides mechanical stability on PCBs

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes against manufacturer documentation to confirm specific packaging and compliance attributes. Ensure compatibility with target PCB stack-up dimensions and mating card specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for single-sided boards. Confirm that the 66-position count matches the circuit design and that the 0.100-inch pitch aligns with existing layout constraints. Validate thermal and environmental ratings against operational requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and edge configurations. This specific model addresses applications needing robust dual-edge retention with standardized spacing.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series variants for alternative position counts. Verify mechanical fit and electrical continuity with direct competitors only if official substitution data is available.
