395-080-560-288

Edgeboard Connectors Overview

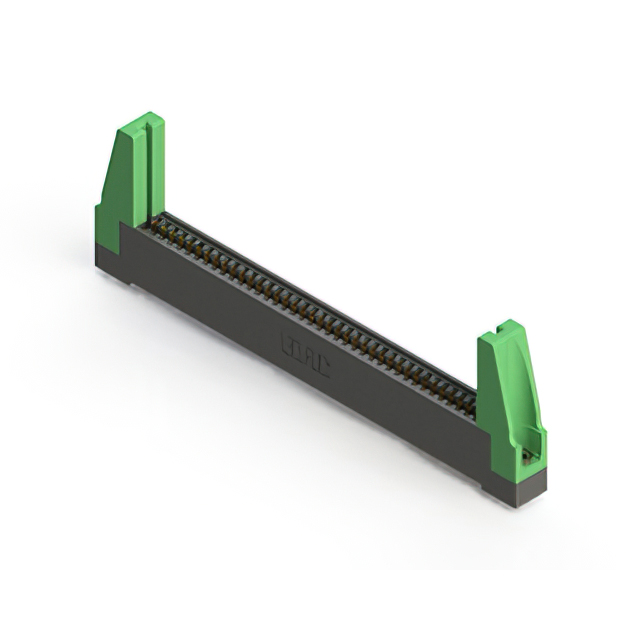

The EDAC Inc. 395-080-560-288 is a dual-row card edge connector designed for vertical panel mounting. It features 80 positions with a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062" (1.57mm). Constructed with copper alloy contacts and gold plating, it utilizes a thermoplastic polyester insulator. This component supports reliable signal transmission in industrial applications requiring robust mechanical stability.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 80 connection points across two parallel rows
• Vertical panel mount design with integrated guide features for secure board insertion
• Gold-plated copper alloy contacts ensuring durable electrical connectivity
• Thermoplastic polyester insulation material rated for high-temperature environments

Edgeboard Connectors Applications

• Industrial control systems requiring stable card-to-board connections
• Telecommunications equipment utilizing standard PC board thicknesses
• Electronic assemblies needing vertical panel-mounted interface solutions

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange characteristics. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Confirm RoHS compliance status through current manufacturer datasheets as specifications may be subject to revision. Cross-reference the part number with authorized distributors to validate availability and lead times.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 80-position interface is required for vertical panel mounting. The 0.100-inch pitch suits standard digital and analog signal routing. Consider the 0.062-inch board thickness constraint during mechanical design. Evaluate the gold contact plating for corrosion resistance needs in the operating environment compared to tin alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 Series, a line of standard card edge connectors. The series offers various position counts and termination options. The 395-080-560-288 specifically addresses the need for high-density dual-row connections in vertical configurations. It complements other single-row or different pitch variants within the broader EDAC portfolio.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series parts with identical 80-position dual-row specifications. Verify that alternative numbers match the 0.100-inch pitch and vertical mounting requirements. Check for equivalent gold plating thickness and insulator material properties to ensure functional interchangeability.
