395-130-523-808

Edgeboard Connectors Overview

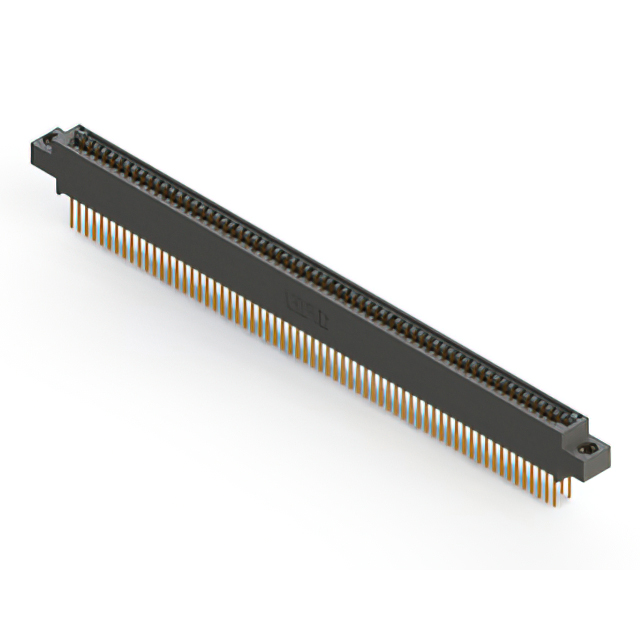

The EDAC Inc. 395-130-523-808 is a standard card edge connector featuring 130 positions with a 2.54 mm pitch. Designed for vertical panel mounting, it utilizes gold-plated contacts and a thermoplastic polyester housing. The component supports a board thickness of 1.57 mm and operates within a temperature range of -40 C to +105 C. It offers an insulation resistance of 5 GOhms and a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure installation
• Gold-plated copper contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment utilizing standard card edges
• Automotive electronics demanding high reliability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact contact plating and housing color specifications. Ensure compatibility with the target PCB edge thickness of 1.57 mm before procurement. Confirm RoHS compliance status through the manufacturer's latest environmental reports.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 130-position interface is required for vertical mounting. Verify that the application environment stays within the specified -40 C to +105 C operating range. Ensure the mating card edge meets the 2.54 mm pitch and 1.57 mm thickness requirements for proper engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series is characterized by its use of thermoplastic polyester materials and gold-plated contacts. It serves as a reliable solution for connecting printed circuit boards in various electronic assemblies requiring durable electrical interfaces.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for confirmed substitute part numbers. Cross-reference compatible models within the same series to ensure identical pin counts and mechanical dimensions.
