396-037-558-678

Edgeboard Connectors Overview

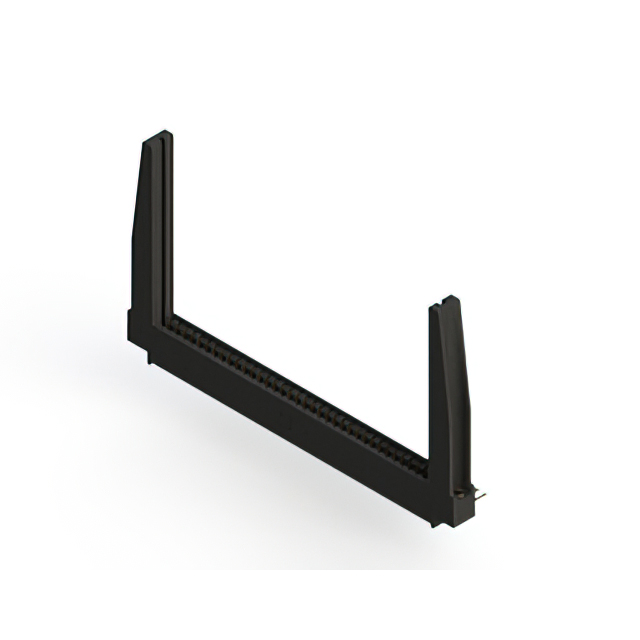

The EDAC Inc. model 396-037-558-678 is a standard card edge connector from the 396 series, designed for reliable signal transmission in electronic assemblies. It features 37 positions arranged in a single row with a female contact configuration and a 0.125-inch (3.175 mm) pitch. The unit utilizes gold-plated contacts to ensure low resistance and durability, housed within a black thermoplastic polyester insulator. This component supports right-angle vertical mounting via solder terminals and includes an integrated guide set for precise board alignment during insertion.

Edgeboard Connectors Feature Summary

• Single-row female contact design with gold-plated terminals for enhanced conductivity
• Integrated guide set mechanism ensures accurate PCB alignment
• Right-angle vertical mounting configuration for space-efficient assembly
• Black thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment connectors
• Industrial control system circuit boards
• General-purpose electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact mechanical dimensions and terminal configurations. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer declarations. Validate that the single-row configuration matches the intended circuit layout requirements.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 0.125-inch pitch is required for vertical mounting applications. The gold plating offers superior corrosion resistance compared to tin finishes. The integrated guide set simplifies assembly processes by reducing misalignment risks. Verify that the right-angle orientation fits within the available chassis or enclosure depth constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors, which are widely utilized across various industrial sectors. The series offers multiple position counts and mounting styles to accommodate diverse design needs. EDAC specializes in robust interconnect solutions for demanding environments, including medical and agricultural technologies where reliability is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes must maintain the 37-position count, 0.125-inch pitch, and single-row female configuration. Verify that alternative components support the same right-angle mounting style and include compatible guide sets. Ensure the replacement housing material and gold plating specifications meet the original performance requirements.
