Edgeboard Connectors Overview

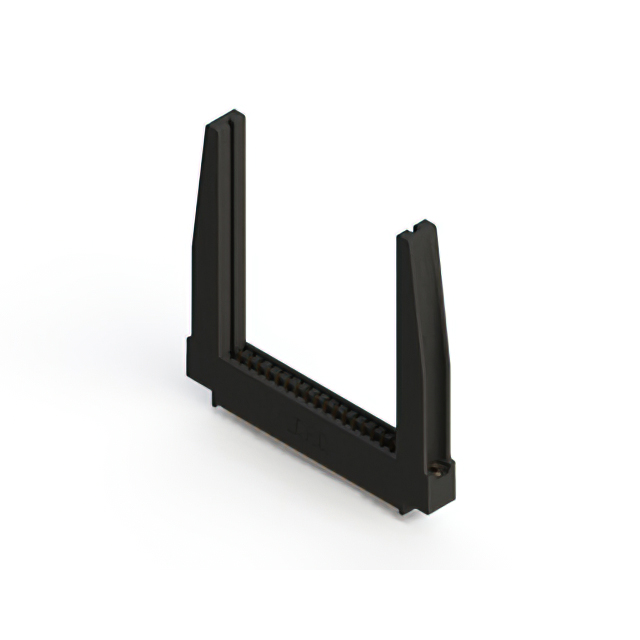

The EDAC Inc. 396-038-556-878 is a standard card edge connector designed for vertical board-to-board interconnection. It features a dual female configuration with 38 positions and a 0.125-inch (3.18mm) pitch. The connector utilizes gold-plated contacts on a black thermoplastic polyester insulator, supporting PCB thicknesses of 1.57mm. It is rated for an operating temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated contacts ensure reliable signal transmission
• Vertical mounting orientation for compact assembly
• Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules
• Medical device circuit boards
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and plating specifications. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Confirm RoHS3 compliance status through manufacturer datasheets or authorized distributor certificates to meet regulatory standards.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge female connector with a 0.125-inch pitch is required. Consider the 38-position capacity and gold plating for durability. Verify that the housing material and temperature rating align with the operational environment. Ensure the mechanical fit matches the enclosure constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. The 396-038-556-878 specifically addresses needs for moderate-density vertical connections in industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 396-036-521-201 and 396-020-520-202, though they differ in position count. Cross-series replacements require verification of pitch, contact type, and mounting style to ensure functional equivalence.
