396-064-520-807

Edgeboard Connectors Overview

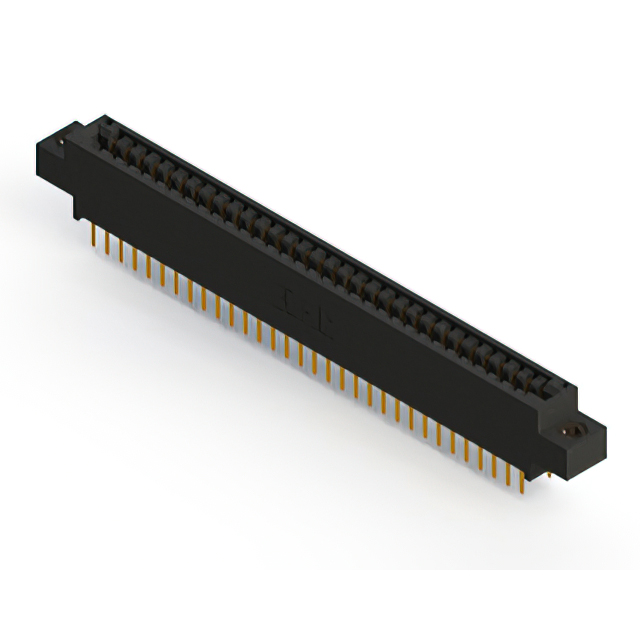

The EDAC Inc. 396-064-520-807 is a dual-edge female card edge connector designed for through-hole mounting. It features 64 positions with a 0.125-inch (3.18mm) pitch and gold-plated contacts. The unit accommodates board thicknesses between 0.054 and 0.070 inches, utilizes a black thermoplastic polyester insulator, and includes flanges for secure installation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for reliable signal transmission
• Gold-plated suspension arm contacts for corrosion resistance
• Integrated flanges with side openings for panel mounting stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment utilizing specialized EDAC solutions
• Agricultural technology hardware exposed to harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct termination and insulation material specifications. Confirm RoHS compliance status prior to integration. Cross-reference the manufacturer part number with distributor listings to validate authenticity and current availability status.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface with a 0.125-inch pitch is required. Ensure the target printed circuit board thickness falls within the specified operational range of 0.054 to 0.070 inches. Verify that the through-hole mounting style aligns with the assembly process requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series provides various position counts and termination options. The 396-064 variant specifically offers 64 positions, distinguishing it from other series members like the 396-010 or 396-036 models which feature different pin counts.

Edgeboard Connectors Replacement Considerations

Direct substitutes include the 396-064-520-201 and 396-064-520-258. These variants share the same 64-position count and dual-edge female configuration but may differ in packaging or specific manufacturing revisions.
