396-072-558-858

Edgeboard Connectors Overview

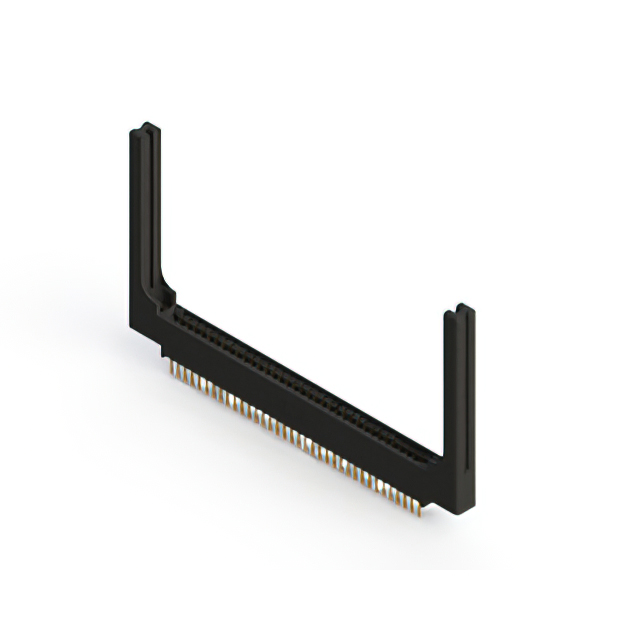

The EDAC Inc. model 396-072-558-858 is a standard card edge connector belonging to the 396 series. It features 72 positions with a contact spacing of 0.125 inches (3.18 mm). The component is designed for dual-edge mating and utilizes gold-plated contacts to ensure reliable signal transmission. It is configured as a female receptacle intended for vertical panel mount installation.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration supports connection from both sides of the circuit board.
• Gold-plated contact surfaces provide durable electrical interfaces resistant to corrosion.
• Vertical mounting style facilitates direct panel integration without angular deviation.

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-panel connections
• Telecommunications equipment utilizing standard card edge interfaces
• Medical interconnect solutions demanding reliable signal pathways

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with target PCB edge thickness and panel cutout dimensions prior to procurement. Confirm regional availability and shipping restrictions through authorized distributors.

Edgeboard Connectors Selection Notes

Select this component when a 72-position dual-edge interface with 3.18 mm pitch is required. The vertical orientation suits applications where space above the panel is limited. Gold plating is essential for environments requiring high cycle durability or corrosion resistance compared to tin alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and mounting styles. The 396-072-558-858 specifically addresses needs for medium-density connections in vertical panel configurations within industrial and commercial electronics sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 396 series variants for different position counts. Verify mechanical fit with competitors offering identical 0.125 inch pitch dual-edge specifications. Ensure replacement parts maintain equivalent gold plating standards and vertical mounting capabilities.
