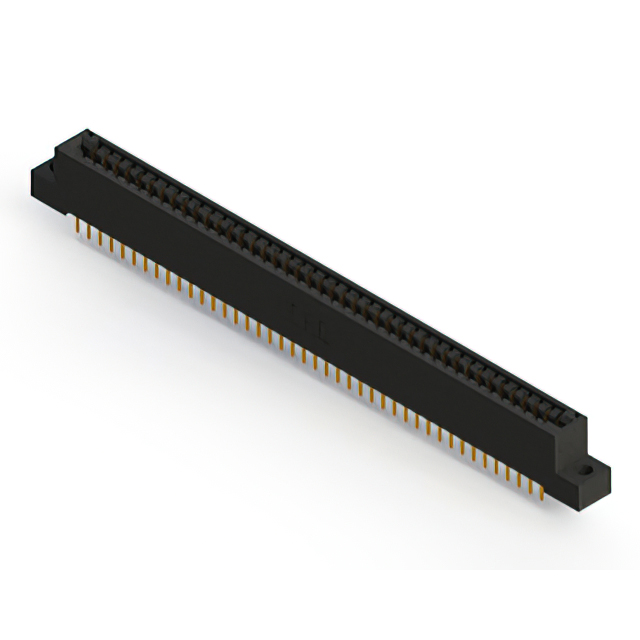

396-084-521-204

$9.86

Description：CONN EDGE DUAL FMALE 84POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box

SKU:86343dc63d7f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

396-084-521-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 84POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 396-084-521-204

Description：CONN EDGE DUAL FMALE 84POS 0.125
Series：396
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：42
Number of Positions：84
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.125" (3.18mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 396-084-521-204

396-084-521-204

Edgeboard Connectors Overview

The EDAC Inc. model 396-084-521-204 is a standard card edge connector belonging to the 396 series. It features an 84-position configuration designed for dual-edge board insertion. The connector utilizes a 0.125-inch (3.18mm) pitch and incorporates gold-plated contacts to ensure reliable signal transmission. This vertical-mount component is specifically engineered for secure interface connections in electronic assemblies requiring high-density contact arrangements.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for robust board retention
Gold-plated termination surfaces for enhanced conductivity
Vertical mounting orientation for standard panel integration

Edgeboard Connectors Applications

High-density electronic interconnect systems
Industrial control module interfaces
Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes against official EDAC documentation to confirm specific plating thickness, flange options, and material specifications. Ensure compatibility with target PCB thickness and mating card dimensions prior to acquisition. Confirm RoHS compliance status through current manufacturer declarations.

Edgeboard Connectors Selection Notes

Select this component when an 84-position dual-edge connection is required with a 0.125-inch pitch. Evaluate mechanical constraints regarding vertical mounting height and panel cutout requirements. Consider the gold contact finish for applications demanding low contact resistance and corrosion resistance over extended operational lifecycles.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic packaging needs. The 396 series is recognized for its reliability in general-purpose industrial and commercial applications requiring stable card-to-board connectivity.
