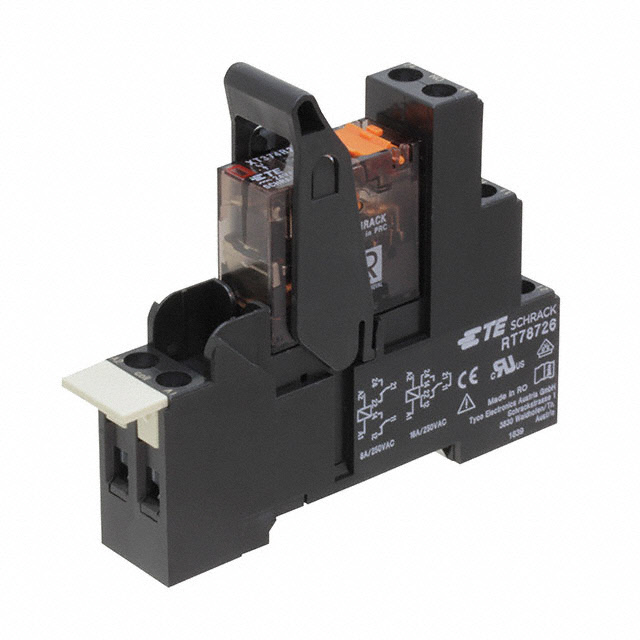

4-1415540-2

4-1415540-2 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 16A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1415540-2

• Description：RELAY GEN PURPOSE SPDT 16A 24V
• Series：XT, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk,Box
• Mounting Type：DIN Rail
• Coil Voltage：24VAC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：16 A
• Switching Voltage：400VAC - Max
• Load - Max Switching：6400VA
• Coil Current：16.7 mA
• Coil Type：Non Latching
• Features：Lighted Indicator, Socket Included
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：18 VAC
• Must Release Voltage：3.6 VAC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：9 ms
• Release Time：6 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1415540-2
