40.31.8.240.0000

Power Relays, Over 2 Amps Overview

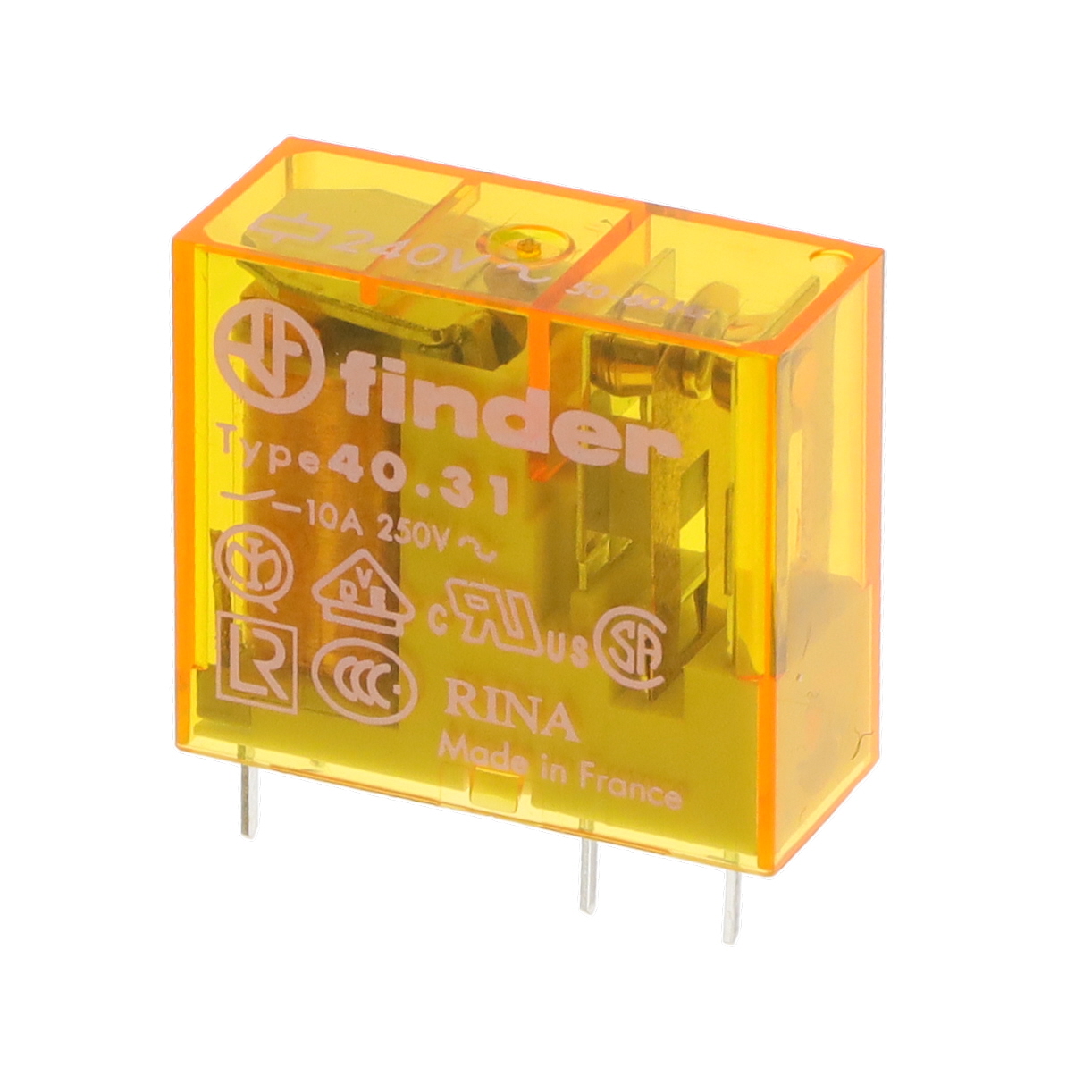

The Finder 40.31.8.240.0000 is a miniature general-purpose electromechanical relay from the 40 series, designed for PCB or plug-in mounting. It features an SPDT contact configuration with a 10A rated current and supports up to 400VAC switching voltage. The coil operates at 240VAC, drawing 7.6 mA with a resistance of 31.5 kOhms. It provides high isolation of 6kV and offers 8mm creepage and clearance distances. The unit is sealed against flux protection and certified by VDE, cURus, and CCC.

Power Relays, Over 2 Amps Feature Summary

• Miniature form factor suitable for direct PCB assembly or use with bases
• High electrical isolation capability with 6kV dielectric strength
• Wide contact gap ensuring 8mm creepage and clearance distances
• Sealed construction providing protection against soldering flux

Power Relays, Over 2 Amps Applications

• Safe isolation of light current control circuits
• Heavy current circuit switching in industrial panels
• Direct print assembly on printed circuit boards
• Applications requiring high isolation standards

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific order matches the 240VAC coil requirement, as the 40 series includes various DC and AC coil options. Confirm whether the application requires the relay body alone or if a compatible base socket is needed for plug-in installation. Check for any recent packaging changes noted in product change notices. Ensure the selected variant meets the required ambient temperature ratings for the intended environment.

Power Relays, Over 2 Amps Selection Notes

Select this model when a compact relay with high isolation is required for 240VAC control applications. The 10A rating makes it suitable for moderate power loads. Consider the 8mm clearance for safety-critical designs. Verify that the PCB footprint or base type aligns with the system design constraints before finalizing the component choice.

Power Relays, Over 2 Amps Part Context

This component belongs to the Finder 40 series, which comprises miniature PCB and plug-in relays. The series is characterized by its small size and high performance, offering both DC and AC coil options. These relays are engineered for reliable operation in various industrial and commercial environments, providing a balance between compactness and switching capacity.

Power Relays, Over 2 Amps Replacement Considerations

Cross-reference with other 40 series variants such as 40.31.8.230.0000 for different coil voltages. Ensure substitute parts maintain the same SPDT configuration and 10A current rating. Verify compatibility with existing PCB layouts or base sockets if using plug-in versions.
