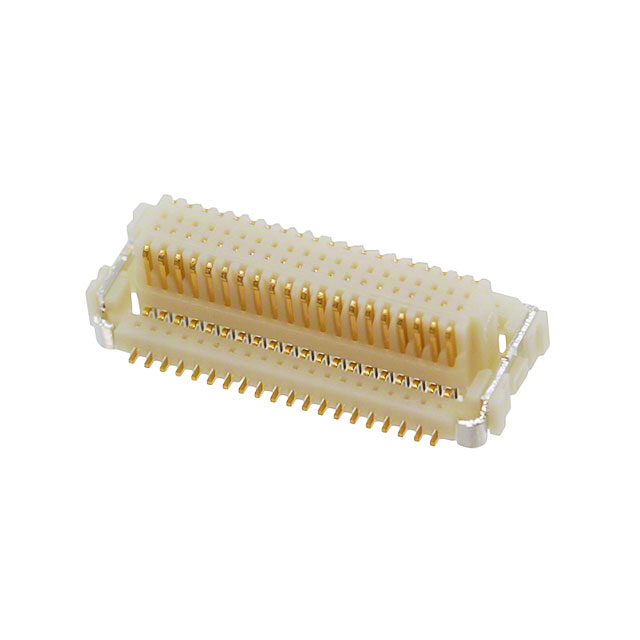

40RF-JMCS-G-1B-TF(N)(LF)(SN)

40RF-JMCS-G-1B-TF(N)(LF)(SN) is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists JST Sales America Inc.. Its product description is CONN RCPT 40POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 40RF-JMCS-G-1B-TF(N)(LF)(SN)

• Description：CONN RCPT 40POS SMD GOLD
• Series：JMC
• Mfr：JST Sales America Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle, Center Strip Contacts
• Number of Positions：40
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Board Guide, Solder Retention
• Contact Finish：Gold
• Contact Finish Thickness：-
• Mated Stacking Heights：4mm ~ 11mm
• Height Above Board：0.130" (3.30mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 40RF-JMCS-G-1B-TF(N)(LF)(SN)
