435-40-202-00-160000

Headers, Male Pins Overview

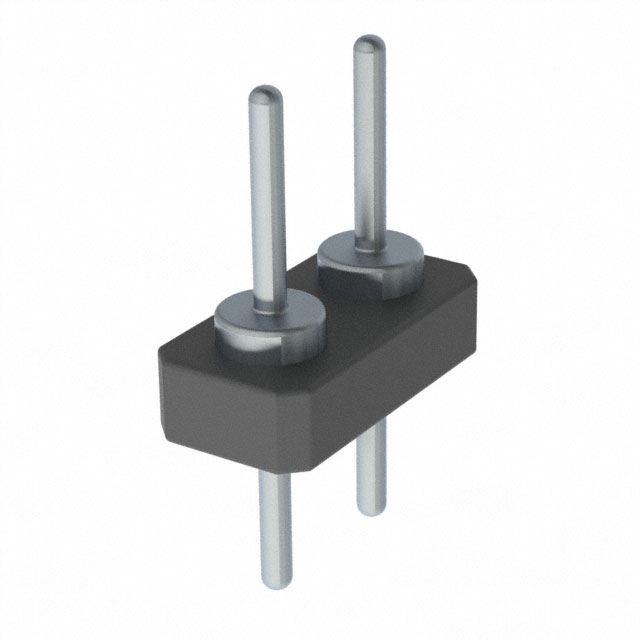

The Mill-Max 435-40-202-00-160000 is a standard pin header connector designed for through-hole mounting. It features two positions arranged in a single row with a 0.100-inch (2.54mm) pitch. The component utilizes solder termination for secure PCB attachment and includes a straight body orientation. This connector is part of the 435 series, intended for reliable electrical interconnection in electronic assemblies requiring standard pin header configurations.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB integration
• Standard pin header configuration with straight body orientation
• Solder termination method ensuring stable electrical connection

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Prototype development and testing setups
• Industrial control system wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch requirements against the target application to ensure compatibility. Confirm that the through-hole mounting style aligns with the printed circuit board layout and manufacturing processes. Check for any specific environmental ratings or material specifications required by the end-use environment before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a simple, low-cost through-hole header is needed for basic connectivity. Ensure the board thickness accommodates the pin length and that the soldering process supports the specified termination type. Consider mechanical stability needs and available panel space when choosing between single-row and multi-row alternatives within the same series.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 435 series of standard pin headers. These components are widely used in the electronics industry for creating reliable connections between circuit boards and external devices or cables. The series offers various position counts and pitch options to suit different density and spacing requirements in modern electronic designs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 2-position, 2.54mm pitch through-hole headers from compatible manufacturers. Verify that alternative parts match the critical dimensions, including pin diameter, overall height, and terminal width, to ensure proper fit and function without modifying the existing PCB footprint.
