Headers, Male Pins Overview

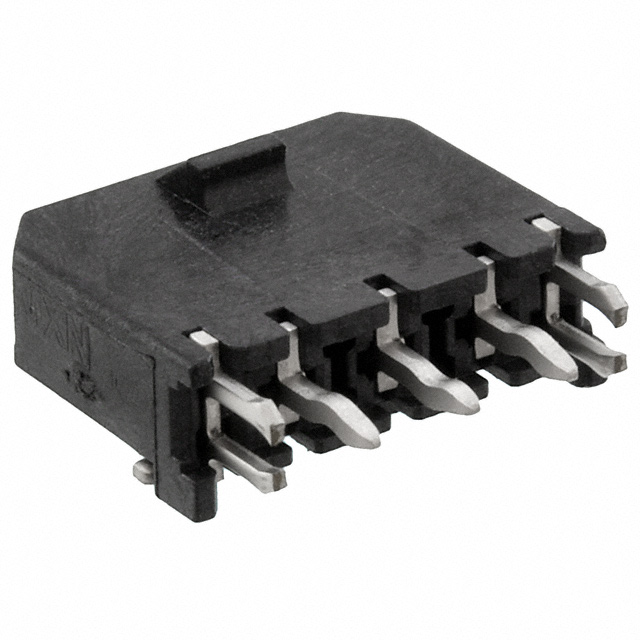

The Molex 436500319 is a Micro-Fit 3.0 series vertical pin header designed for wire-to-board connections. It features a single row with three circuits and a 3.00mm pitch. The component utilizes through-hole termination with a straight orientation. It includes a PCB press-fit metal retention clip for secure mounting. The contacts are plated with 0.38µm gold, while the housing is black high-temperature thermoplastic. The connector is glow-wire capable and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Vertical wire-to-board configuration with single-row layout
• Integrated PCB press-fit metal retention clip for mechanical stability
• Glow-wire capable construction for enhanced fire safety compliance
• Gold-plated contacts ensuring reliable signal transmission

Headers, Male Pins Applications

• Industrial electronics requiring board-level interconnects
• Automation equipment control modules
• Consumer devices needing compact reliable connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to ensure compatibility with required plating thickness and retention clip configurations. Confirm that the glow-wire capability meets the specific safety standards of your target application region. Cross-reference the terminal interface style to match existing assembly processes.

Headers, Male Pins Selection Notes

Select this part when a vertical, shrouded header with metal retention is required for 3mm pitch applications. Ensure the operating temperature range up to 105°C aligns with the thermal environment. Verify that the through-hole mounting style suits the PCB design constraints and that the single-row format fits the available board space.

Headers, Male Pins Part Context

This component belongs to the Micro-Fit 3.0 family, known for robust performance in demanding environments. The series offers various configurations including right-angle and vertical headers with different retention options. This specific model emphasizes mechanical security via its metal clip and electrical reliability through gold plating, fitting into Molex's broader portfolio of industrial and consumer interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 3.00mm pitch, 3-position count, vertical orientation, and through-hole termination. Verify that any alternative also includes a metal retention clip and matches the glow-wire capability requirements. Contact Molex technical support for validated cross-reference data.
