499-10-224-10-009000

Headers, Male Pins Overview

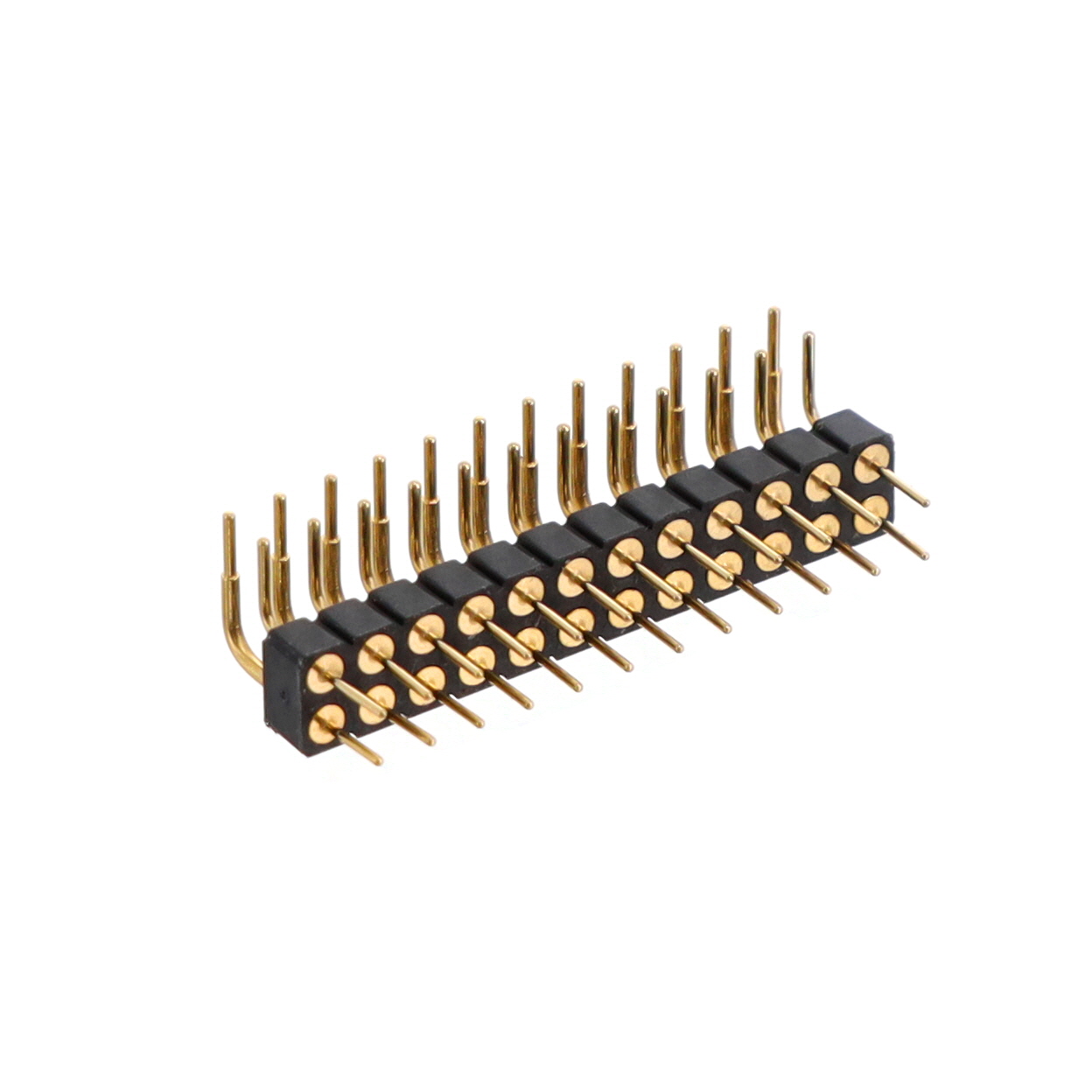

The Mill-Max 499-10-224-10-009000 is a right-angle pin header connector designed for through-hole solder mounting. It features a double-row configuration with 24 positions and a standard 0.100 inch (2.54mm) pitch. The component utilizes a .018 inch (0.457mm) pin head diameter, providing a mating surface compatible with Mill-Max spring-loaded connectors. This interconnect solution is engineered for high-reliability applications requiring precise mechanical alignment and durable electrical connections.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact board layout integration
• Double-row design supports increased contact density within limited footprint areas
• Compatible with spring-loaded probe systems for efficient testing environments

Headers, Male Pins Applications

• Board-to-board interconnection in electronic assemblies
• Test point interfaces for automated test equipment
• Spring-loaded connector mating surfaces

Headers, Male Pins Procurement Notes

Verify the specific part number against official Mill-Max documentation to confirm current availability and manufacturing status. Ensure that the right-angle orientation and double-row configuration align with the target PCB layout requirements. Cross-reference the pin head dimensions to guarantee compatibility with intended mating components or probes.

Headers, Male Pins Selection Notes

Select this component when a right-angle header is required for through-hole assembly. The double-row arrangement offers higher pin counts compared to single-row alternatives. Confirm that the 0.100 inch pitch matches the system design specifications. Evaluate the need for spring-loaded probe compatibility if the application involves frequent connection cycles or testing scenarios.

Headers, Male Pins Part Context

This connector belongs to the Mill-Max 499 series, which specializes in precision-machined interconnect components. The manufacturer focuses on high-reliability solutions for demanding industrial and commercial applications. The series is characterized by consistent dimensional tolerances and robust construction methods suitable for rigorous operational environments.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative suppliers by matching critical parameters such as pitch, row count, and mounting style before considering substitution.
