499-10-226-10-009000

Headers, Male Pins Overview

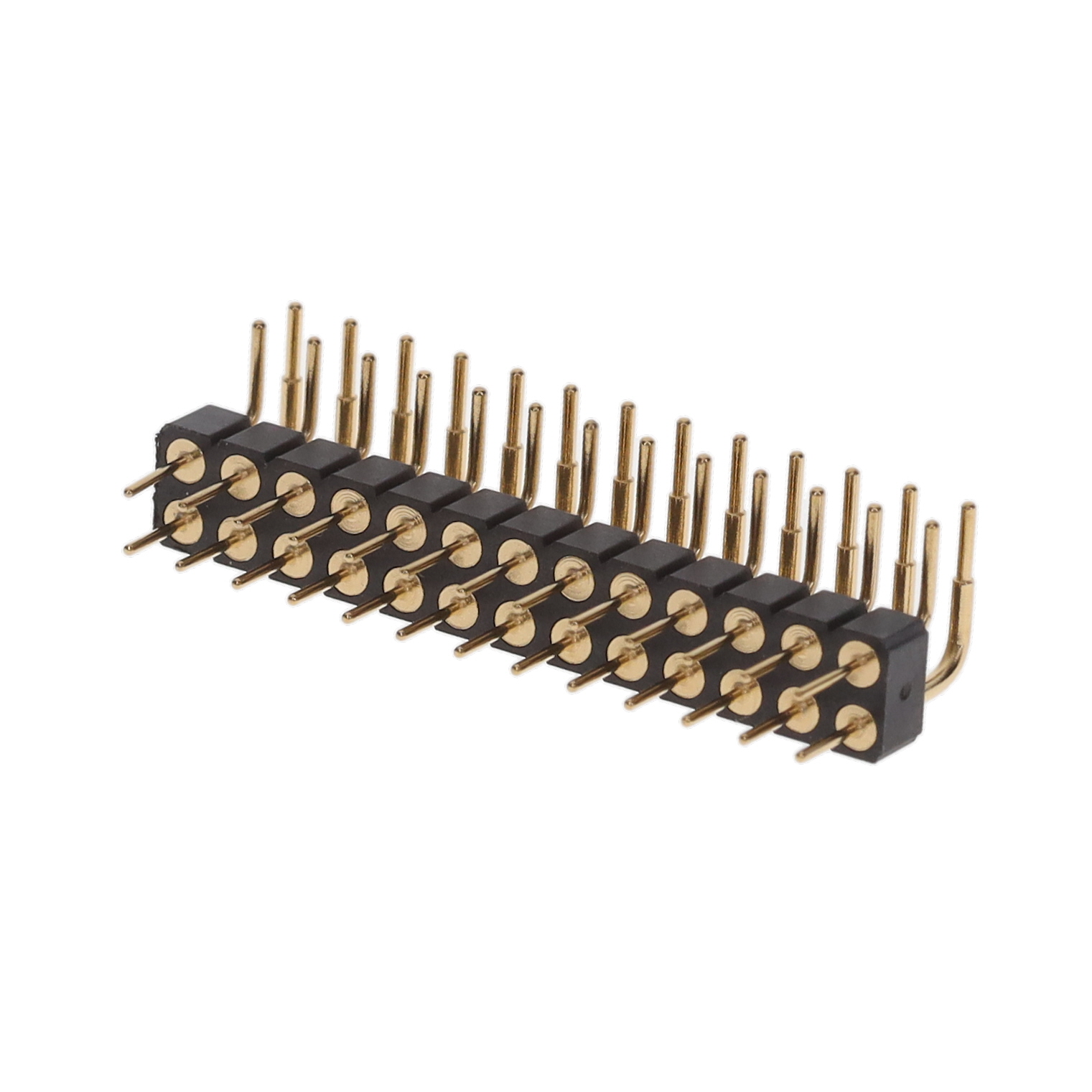

The Mill-Max 499-10-226-10-009000 is a right-angle pin header connector featuring 26 positions in a double-row configuration. It utilizes a 0.100-inch (2.54mm) pitch and is designed for through-hole solder mounting. The component includes contact lengths of 0.18 inches (4.57mm) for the pins, with an overall height of 0.394 inches (10.00mm). The contacts are gold-plated to ensure reliable signal transmission.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-board connections
• Double-row strip format supports high-density circuit layouts
• Gold-plated contacts provide corrosion resistance and stable conductivity

Headers, Male Pins Applications

• Board-to-board interconnects
• Target card connectors
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required pin count and row configuration. Confirm that the right-angle orientation aligns with the mechanical constraints of the assembly. Ensure compatibility with standard 2.54mm mating headers or target cards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a low-profile, right-angle connection is required for double-row applications. Consider the through-hole termination method for robust mechanical stability. Evaluate the gold plating thickness if the application demands extended cycle life or harsh environmental resistance compared to tin alternatives.

Headers, Male Pins Part Context

This component belongs to the Mill-Max 499 Series, which specializes in precision-machined interconnects. The series is characterized by its use as target connectors for probe cards and test fixtures. These headers are engineered for high-reliability applications requiring precise alignment and consistent electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include part numbers with identical pitch and row counts but different pin lengths or orientations. Verify mechanical fit and electrical specifications before swapping components.
