5-1658462-1

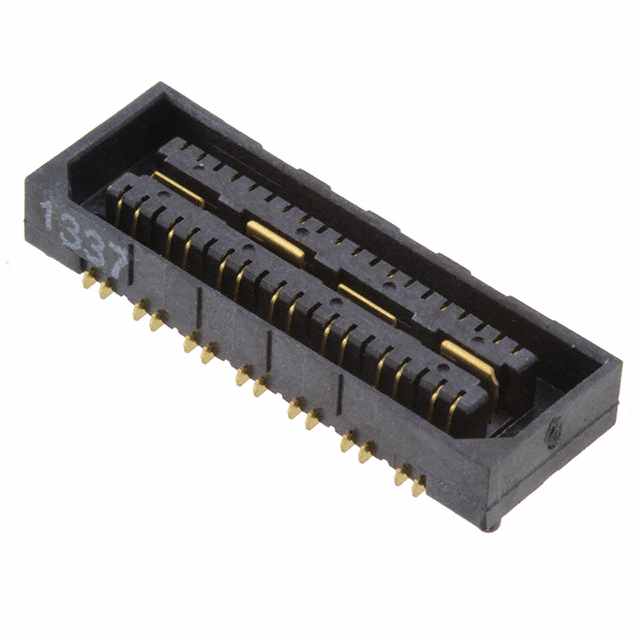

5-1658462-1 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN DIFF ARRAY RCP 28P SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 5-1658462-1

• Description：CONN DIFF ARRAY RCP 28P SMD GOLD
• Series：MICTOR SB
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Differential Pair Array, Female
• Number of Positions：28
• Pitch：0.031" (0.80mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Board Guide, Ground Bus (Plane)
• Contact Finish：Gold
• Contact Finish Thickness：30.0µin (0.76µm)
• Mated Stacking Heights：5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm
• Height Above Board：0.128" (3.25mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 5-1658462-1
