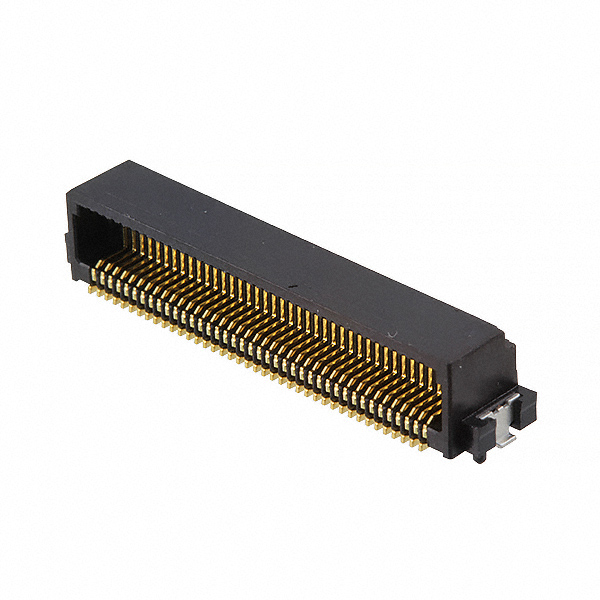

5-1747257-3

5-1747257-3 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PLUG 80POS R/A SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 5-1747257-3

• Description：CONN PLUG 80POS R/A SMD GOLD
• Series：Fine Mate
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Plug, Outer Shroud Contacts
• Number of Positions：80
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount, Right Angle
• Features：Board Guide, Solder Retention
• Contact Finish：Gold
• Contact Finish Thickness：-
• Mated Stacking Heights：-
• Height Above Board：0.187" (4.75mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 5-1747257-3
