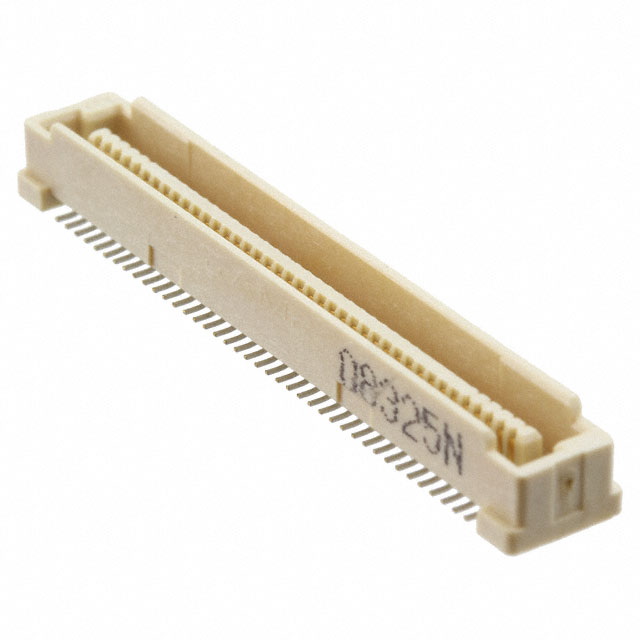

5-5177986-3

5-5177986-3 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN PLUG 80POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 5-5177986-3

• Description：CONN PLUG 80POS SMD GOLD
• Series：Free Height (FH)
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Plug, Center Strip Contacts
• Number of Positions：80
• Pitch：0.031" (0.80mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Board Guide
• Contact Finish：Gold
• Contact Finish Thickness：30.0µin (0.76µm)
• Mated Stacking Heights：5mm, 9mm, 13mm, 17mm
• Height Above Board：0.191" (4.85mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 5-5177986-3
