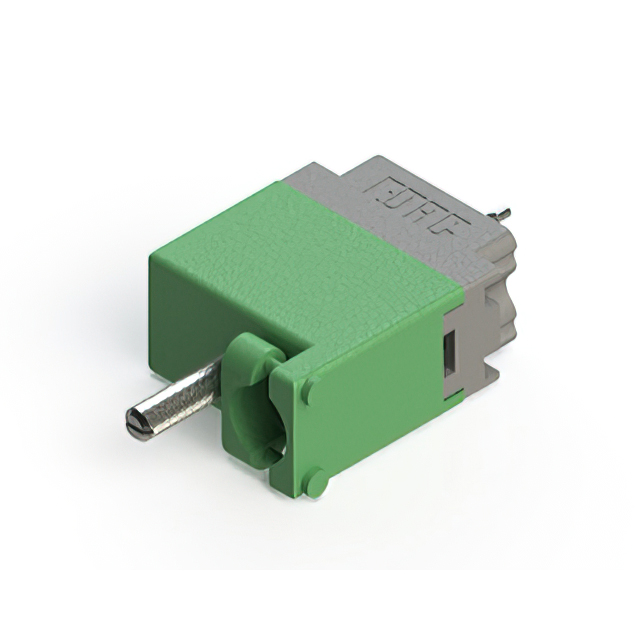

Specialized Backplane Connectors 519-014-500-315 product image

519-014-500-315

$32.38

Description：519 SERIES RACK & PANEL CONNECTO
Series：519
Mfr：EDAC Inc.
Package：Bulk

SKU:032a3f6db89e Category: Specialized Backplane Connectors Brand: EDAC Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

519-014-500-315 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is 519 SERIES RACK & PANEL CONNECTO. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for 519-014-500-315

Description：519 SERIES RACK & PANEL CONNECTO
Series：519
Mfr：EDAC Inc.
Package：Bulk
Connector Usage：Backplane
Connector Type：Plug, Hermaphroditic Contacts
Connector Style：Rack and Panel
Number of Positions：14
Number of Positions Loaded：All
Pitch：0.150" (3.81mm)
Number of Rows：3
Number of Columns：6
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Layout, Typical：-
Features：Jackscrew, Guide Pin
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Color：Gray

Specialized Backplane Connectors datasheet and documents for 519-014-500-315
