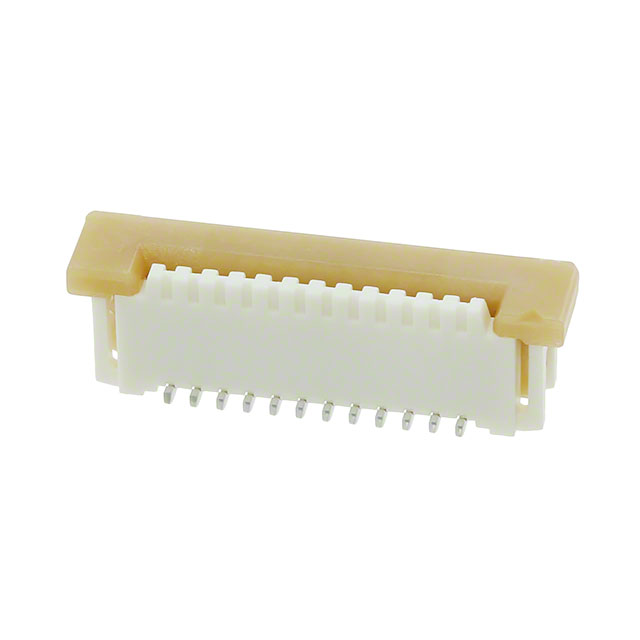

526101271

526101271 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN VERT 12POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 526101271

• Description：CONN VERT 12POS 1MM SMD
• Series：Easy-On 52610
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：-
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：12
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.226" (5.74mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Bismuth
• Housing Material：Polyamide (PA46), Nylon 4/6
• Actuator Material：Polyphenylene Sulfide (PPS)
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：125V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 526101271
