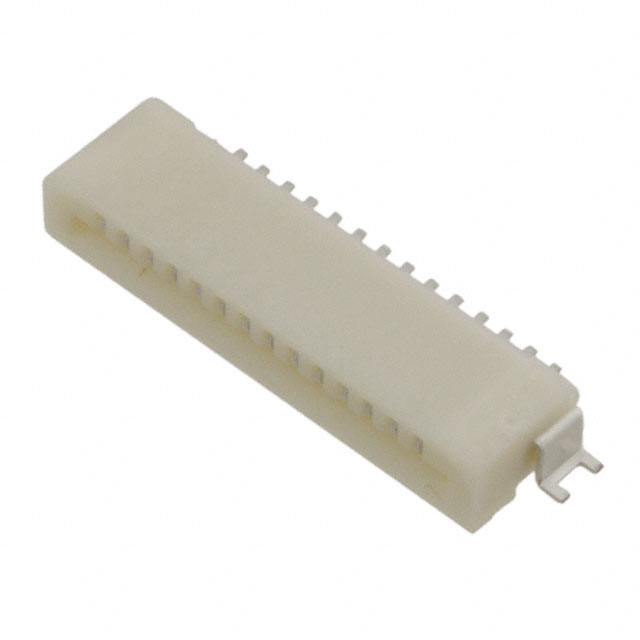

FFC, FPC (Flat Flexible) Connector Assemblies 527931470 product image

527931470

$1.27
  • Description：CONN FPC TOP 14POS 1MM R/A
  • Series：Easy-On 52793
  • Mfr：Molex
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a57f7bcbcb1b Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

527931470 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC TOP 14POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 527931470

  • Description：CONN FPC TOP 14POS 1MM R/A
  • Series：Easy-On 52793
  • Mfr：Molex
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Flat Flex Type：FPC
  • Mounting Type：Surface Mount, Right Angle
  • Connector/Contact Type：Contacts, Top
  • Number of Positions：14
  • Pitch：0.039" (1.00mm)
  • Termination：Solder
  • FFC, FCB Thickness：0.30mm
  • Height Above Board：0.122" (3.10mm)
  • Locking Feature：-
  • Cable End Type：Straight
  • Contact Material：Phosphor Bronze
  • Contact Finish：Tin Bismuth
  • Housing Material：Polyphenylene Sulfide (PPS)
  • Actuator Material：-
  • Features：Solder Retention
  • Voltage Rating：50V
  • Operating Temperature：-20°C ~ 85°C
  • Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 527931470

527931470
