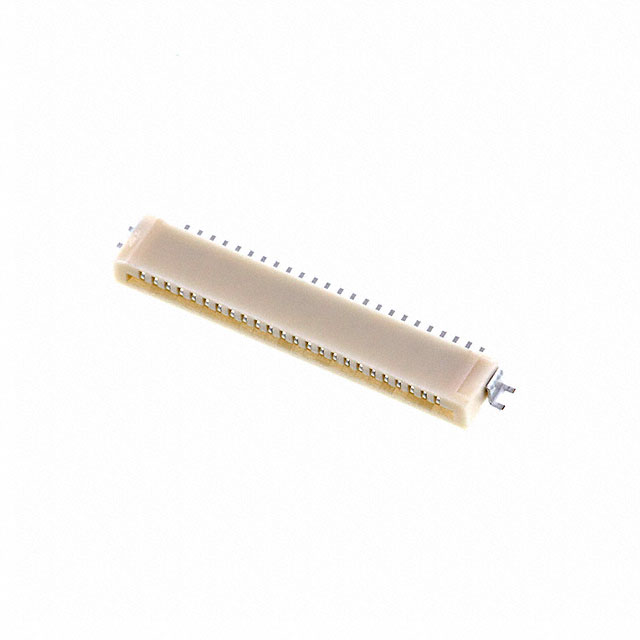

FFC, FPC (Flat Flexible) Connector Assemblies 527932470 product image

527932470

$1.36

Description：CONN FPC TOP 24POS 1MM R/A
Series：Easy-On 52793
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:abbe3bb11a8a Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

527932470 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC TOP 24POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 527932470

Description：CONN FPC TOP 24POS 1MM R/A
Series：Easy-On 52793
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：24
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.122" (3.10mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyphenylene Sulfide (PPS)
Actuator Material：-
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 527932470

527932470
