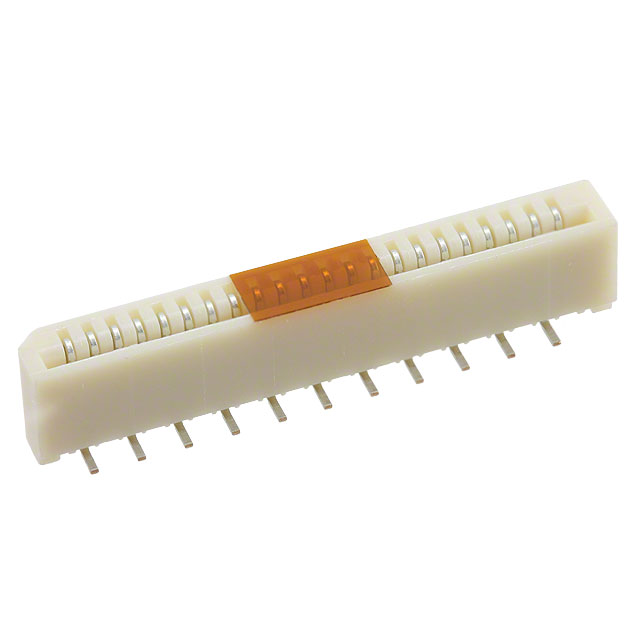

FFC, FPC (Flat Flexible) Connector Assemblies 528082271 product image

528082271

$0.75

Description：CONN FFC FPC VERT 22POS 1MM SMD
Series：Easy-On 52808
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:07f620ef0888 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

528082271 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC FPC VERT 22POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 528082271

Description：CONN FFC FPC VERT 22POS 1MM SMD
Series：Easy-On 52808
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：22
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.199" (5.05mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyphenylene Sulfide (PPS)
Actuator Material：-
Features：-
Voltage Rating：125V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 528082271

528082271
