541323897

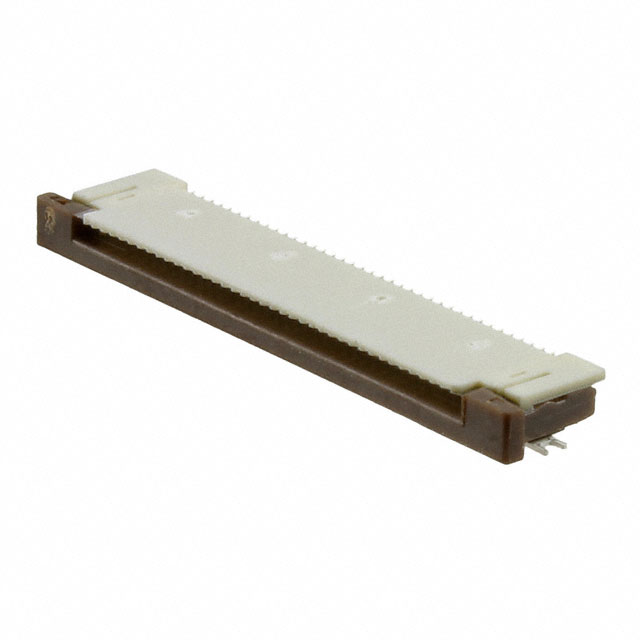

541323897 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC BOTTOM 38POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 541323897

• Description：CONN FFC BOTTOM 38POS 0.5MM R/A
• Series：Easy-On 54132
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：38
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight, Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Bismuth
• Housing Material：Polyamide (PA46), Nylon 4/6
• Actuator Material：Polyphenylene Sulfide (PPS)
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：UL94 V-0
