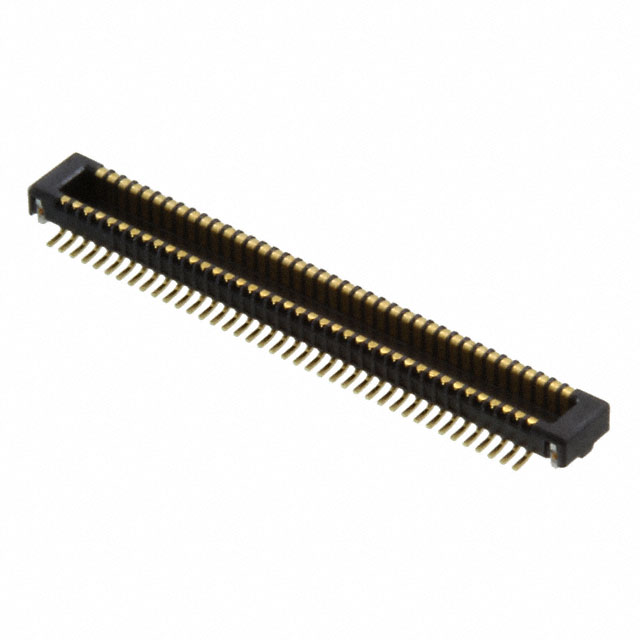

Arrays, Edge Type, Mezzanine (Board To Board) 559090874 product image

559090874

$5.87

Description：CONN PLUG 80POS SMD GOLD
Series：SlimStack 55909
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:066ca8c22d69 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

559090874 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is CONN PLUG 80POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 559090874

Description：CONN PLUG 80POS SMD GOLD
Series：SlimStack 55909
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：80
Pitch：0.016" (0.40mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Solder Retention
Contact Finish：Gold
Contact Finish Thickness：8.00µin (0.203µm)
Mated Stacking Heights：1.5mm
Height Above Board：0.045" (1.14mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 559090874

559090874
