Headers, Male Pins Overview

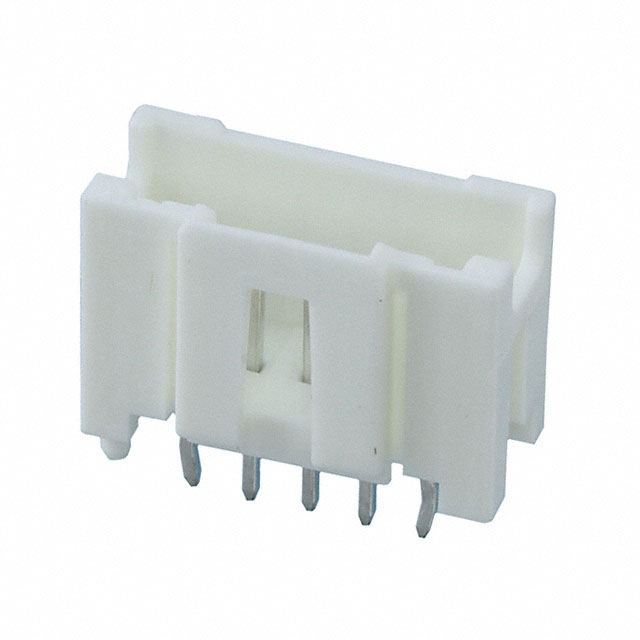

The Molex 55932-0510 is a MicroClasp series vertical PCB header designed for wire-to-board signal applications. It features a 2.00mm pitch, single row configuration with five circuits. The connector utilizes through-hole solder pin termination and tin-plated male contacts housed in natural polyester resin. Rated for 250V and 3A, it operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• MicroClasp system provides space savings and easy mating compared to similar 2.00mm pitch systems
• Vertical shrouded design with integrated PCB locator for precise alignment
• Tin-plated contacts ensure reliable signal transmission

Headers, Male Pins Applications

• Wire-to-board signal interconnects
• General electronic equipment
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Molex documentation to confirm circuit count and housing variations. Ensure compatibility with mating wire harnesses by checking contact dimensions. Confirm RoHS compliance status via the manufacturer datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring compact vertical mounting with a 2.00mm pitch. Verify that the 3A current rating and 250V voltage limit meet circuit requirements. Ensure the through-hole footprint matches the PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the Molex MicroClasp family, which focuses on high-density connectivity solutions. The series offers various pin counts and orientations, providing designers with flexible options for board-level interconnections while maintaining consistent mechanical and electrical performance standards across the product line.

Headers, Male Pins Replacement Considerations

Consult Molex official cross-reference guides for verified substitutes. Generic equivalents may not match the MicroClasp locking mechanism or dimensional tolerances required for proper assembly.
