5976201602F

LED Indication - Discrete Overview

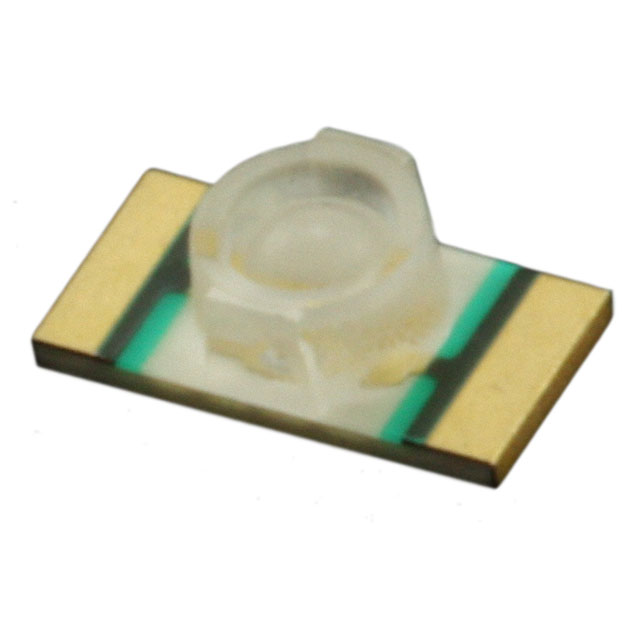

The Dialight 5976201602F is a discrete orange surface-mount LED component designed for indication applications. It features a clear lens with a round shape and flat top, emitting at a peak wavelength of 594 nm. The device utilizes a 1206 (3216 metric) package footprint with dimensions of 3.2 mm in length, 1.6 mm in width, and a maximum height of 1.2 mm. Key electrical parameters include a forward voltage of 2.1 V and a test current of 20 mA. The unit provides a luminous intensity of 265 mcd and offers a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Orange emission color with clear non-diffused lens
• Round optical profile with flat top geometry
• Standard 1206 surface-mount form factor

LED Indication - Discrete Applications

• Panel status indication
• Equipment power signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the obsolete status of this specific part number before initiating procurement processes. Confirm availability through authorized distributors or secondary market suppliers, as original manufacturing may have ceased. Ensure that any substitute components meet identical mechanical and electrical specifications to maintain system compatibility and regulatory compliance.

LED Indication - Discrete Selection Notes

Select this component when a standard 1206 footprint orange indicator is required. Consider the 120-degree viewing angle and clear lens characteristics for visibility requirements. Evaluate the 265 mcd intensity against ambient lighting conditions to ensure adequate signal perception during operation.

LED Indication - Discrete Part Context

This component belongs to the Dialight microLED series, which focuses on compact surface-mount indicators. The 5976201602F represents a specific variant within this family, distinguished by its orange emission and 1206 package size. It serves as a standard solution for space-constrained electronic assemblies requiring reliable visual status feedback.

LED Indication - Discrete Replacement Considerations

The 5976201602F is officially listed as obsolete. No direct public substitute part numbers are confirmed in the provided documentation. Engineers must identify equivalent components from other manufacturers or alternative Dialight series that match the 1206 footprint, orange wavelength, and electrical ratings.
