5976301607F

$1.64

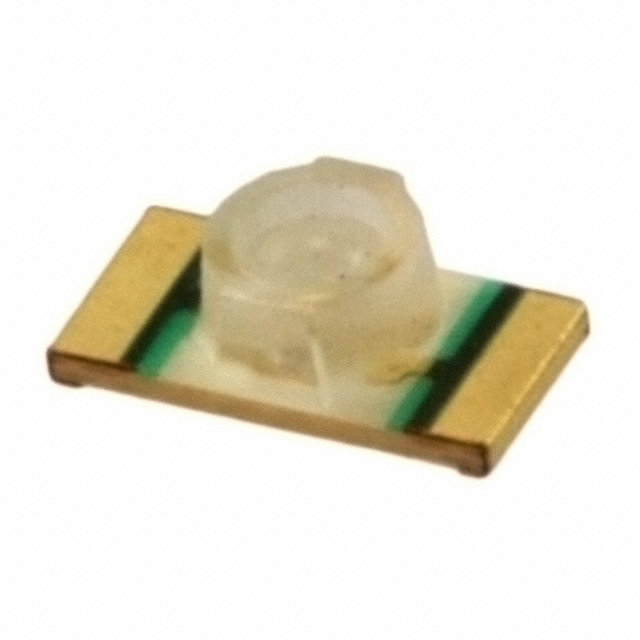

Description：LED GREEN CLEAR 1206 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f829c6cd0764 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5976301607F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED GREEN CLEAR 1206 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5976301607F

Description：LED GREEN CLEAR 1206 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：411mcd
Lens Style：Round with Flat Top
Lens Size：1.60mm Dia
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：70°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：525nm
Wavelength - Peak：530nm
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5976301607F

5976301607F

LED Indication - Discrete Overview

The Dialight 5976301607F is a single-color green surface-mount LED in the 597 series. It features a water-clear lens and emits at a peak wavelength of 530nm. The component operates with a typical forward voltage of 2V and a test current of 20mA. It utilizes a 1206 (3216 metric) package measuring 3.20mm x 1.60mm with a maximum height of 1.10mm. The device has a viewing angle of 70 degrees and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

Green light emission with a 530nm peak wavelength
Water-clear rectangular lens design
Standard surface-mount installation configuration

LED Indication - Discrete Applications

Board status indication
Electronic equipment signaling
General-purpose visual indicators

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS3 compliance and moisture sensitivity level 3 handling requirements during storage and assembly. Ensure compatibility with standard reflow soldering profiles for 1206 packages. Cross-reference datasheet specifications against project requirements before procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring green visual feedback in compact designs. The 1206 footprint offers space efficiency while maintaining adequate visibility. Consider the 70-degree viewing angle for directional lighting needs. Evaluate thermal management capabilities within the target operating temperature range.

LED Indication - Discrete Part Context

This part belongs to the Dialight 597 series of surface-mount LEDs. The series provides various color options in standardized packages. The 5976301607F specifically addresses green indicator requirements. It supports automated pick-and-place manufacturing processes.
