5977701502F

LED Indication - Discrete Overview

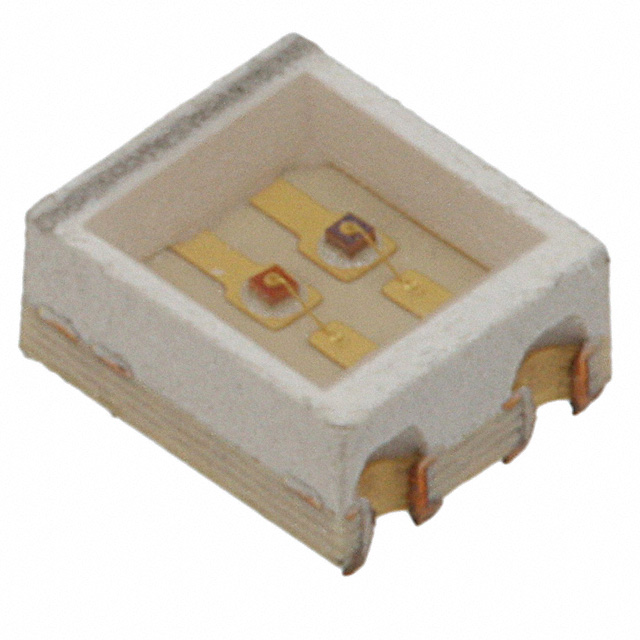

The Dialight 5977701502F is a surface-mount bi-color LED featuring green and red elements in a compact SMD package. It operates with a forward current of 30 mA and a forward voltage of 2.6 V. The device emits light at peak wavelengths of 565 nm for green and 630 nm for red, with a luminous intensity of 16 mcd. It offers a wide viewing angle of 120 degrees and functions within an industrial temperature range of -55°C to 100°C. The component utilizes a non-diffused lens with dimensions of 2.39x2.39x0.95 mm.

LED Indication - Discrete Feature Summary

• Bi-color configuration enabling dual-state visual indication through integrated green and red semiconductor elements.
• Industrial-grade thermal stability supporting reliable operation across extreme ambient temperature variations.
• Wide angular visibility provided by a 120-degree viewing angle for enhanced signal detection.

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in industrial control panels
• Equipment status monitoring systems

LED Indication - Discrete Procurement Notes

Verify the specific part number suffix against manufacturer documentation to ensure correct wavelength and binning specifications. Confirm that the required forward current and voltage ratings align with the target circuit design before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when dual-color status indication is required in space-constrained applications. Consider the 120-degree viewing angle and industrial temperature range suitability for harsh environments. Ensure the surface-mount footprint matches the PCB layout requirements.

LED Indication - Discrete Part Context

This component belongs to the Dialight MicroLED series, designed for high-density surface-mount applications. It provides a compact solution for multi-color signaling without requiring separate discrete components, simplifying assembly processes.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative bi-color SMD LEDs based on pinout, electrical characteristics, and mechanical dimensions.

LED Indication - Discrete FAQ

What is the peak wavelength for the green element?

The peak wavelength for the green element is 565 nm.

Is the lens diffused or non-diffused?

The lens type is non-diffused.
